Work Page 10-25
1915 George Washburn Model 530
The way I see the Washburn numbering system (Opinion)
Model #530 denotes this catalog style.
Batch # 13 - it is the 13th that came off of the line of this model.
Serial # 8429 = the total number of all Washburn instruments made up until this point.
Model #530 denotes this catalog style.
Batch # 13 - it is the 13th that came off of the line of this model.
Serial # 8429 = the total number of all Washburn instruments made up until this point.
10-3/4 Single spun rim , flathead configuration

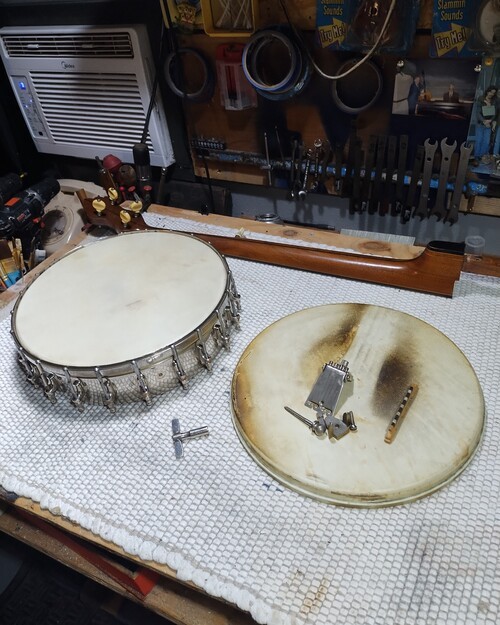

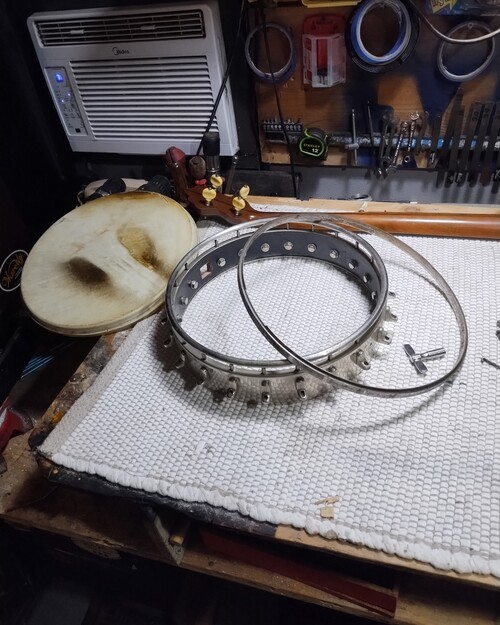

Replace calfskin head
Replace frets as needed
Cleanup-Setup on light gauge metal strings.
Replace calfskin head
Replace frets as needed
Cleanup-Setup on light gauge metal strings.

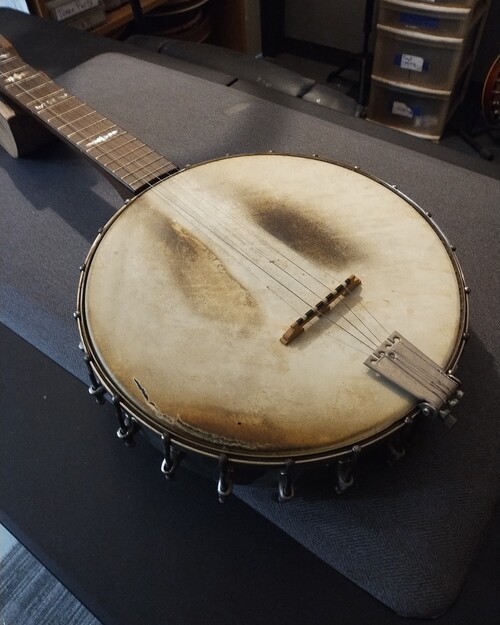

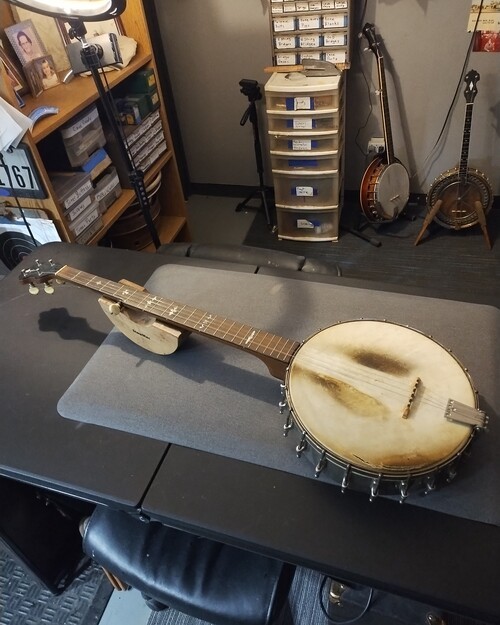

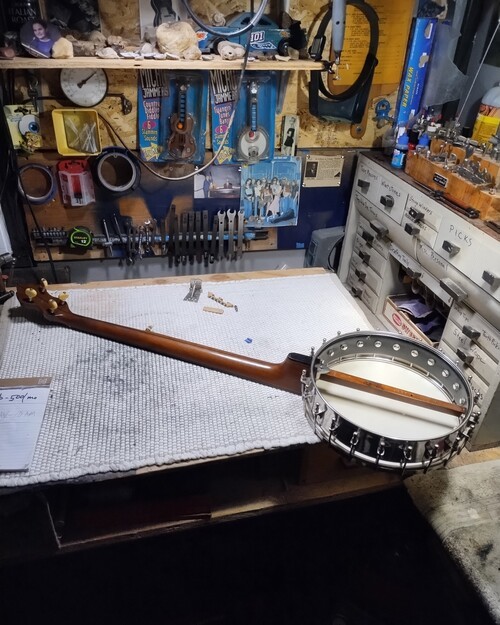

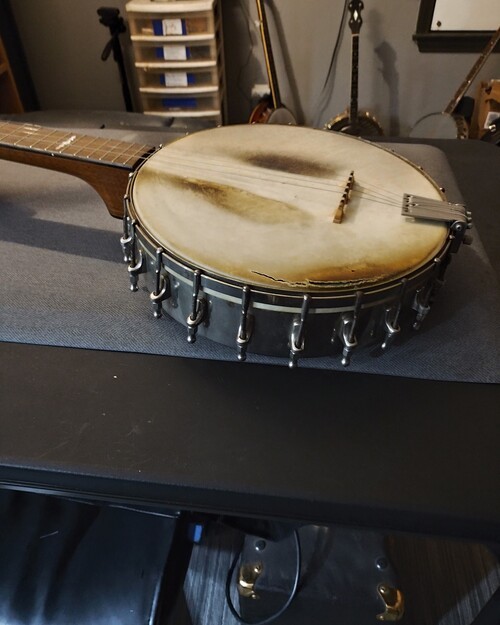

Well played, well cared for

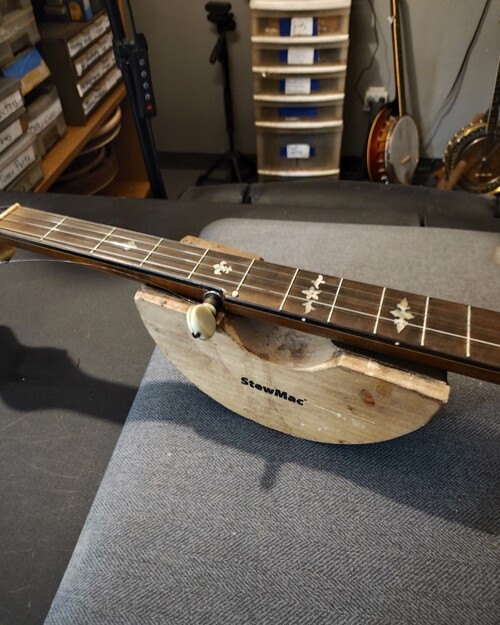

Minimal fingerboard wear.
Strung on metal strings.

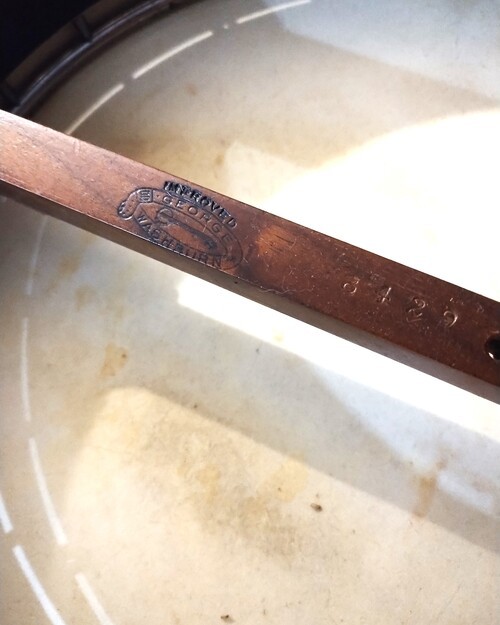

Serial #
Ready to clean/wax

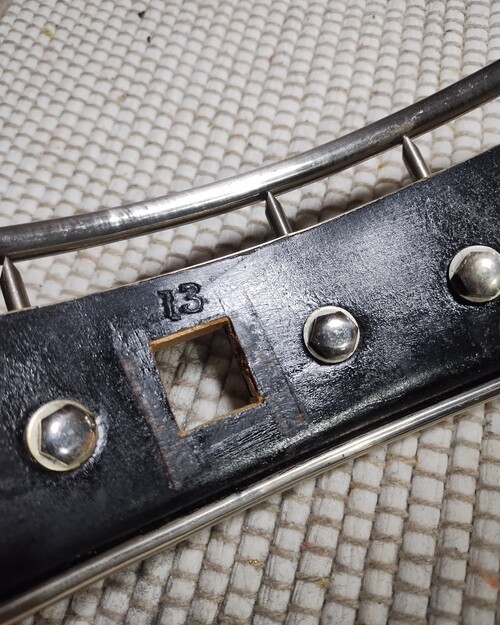

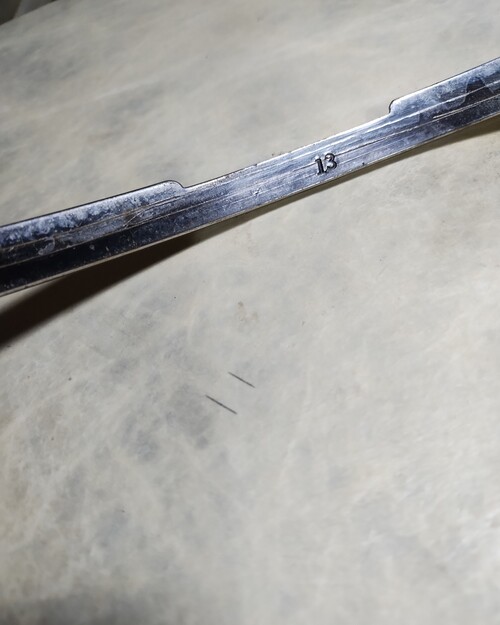

Batch #
I had only one, VG cond.
Back to a positive fit.

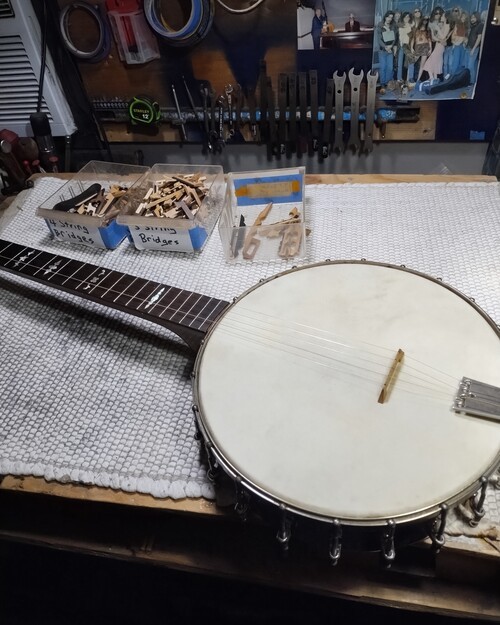

Setup on light gauge strings, looking at bridges.
Modern tailpiece and bridge.

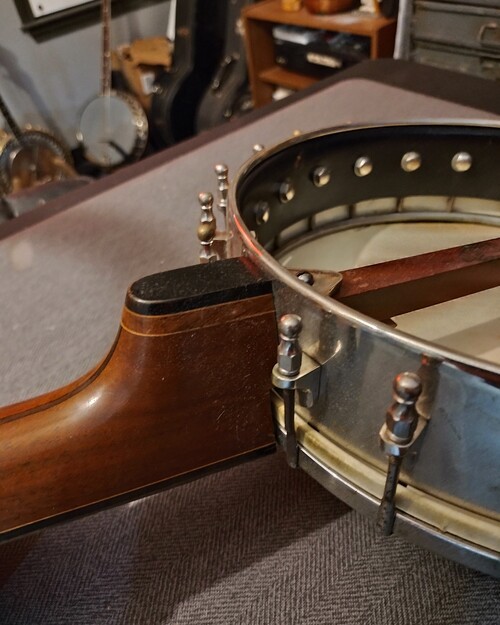

Correct heel contact.
Head bearing on metal stanchions.

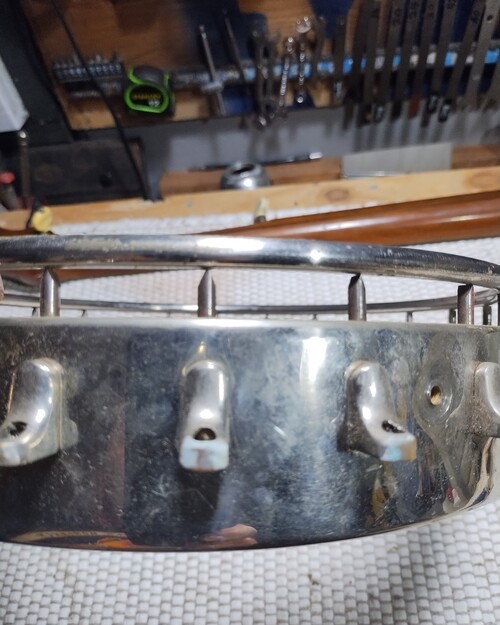

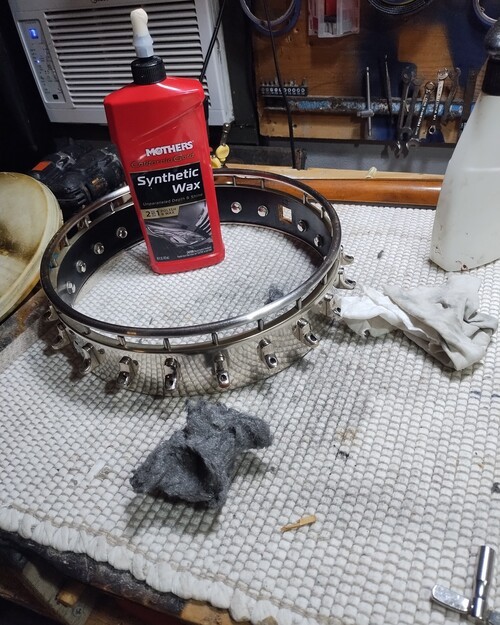

Hardware cleaned/waxed

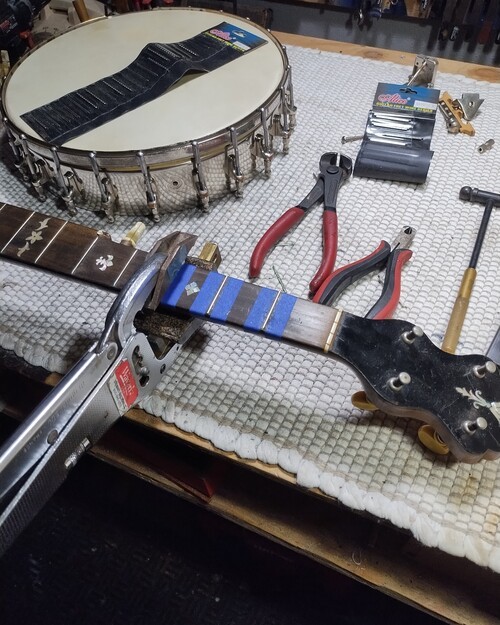

Replacing the 1st 3 fret wires.
Neck cleaned and waxed.

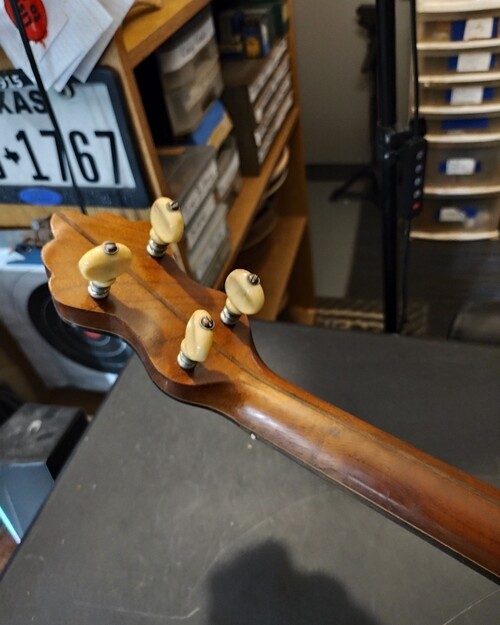

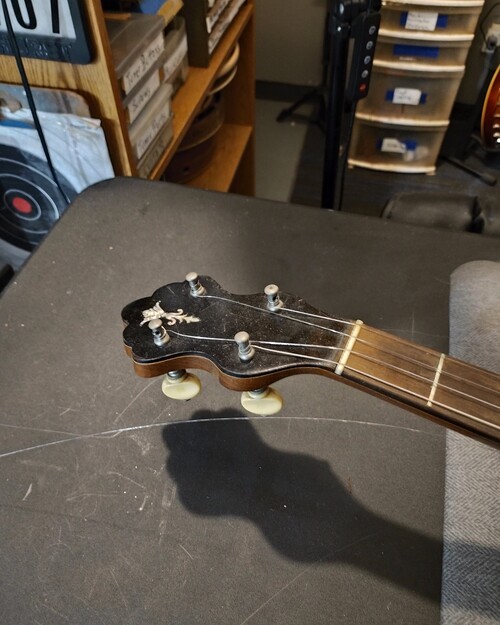

I chose a period Grover.
All other hardware is original.

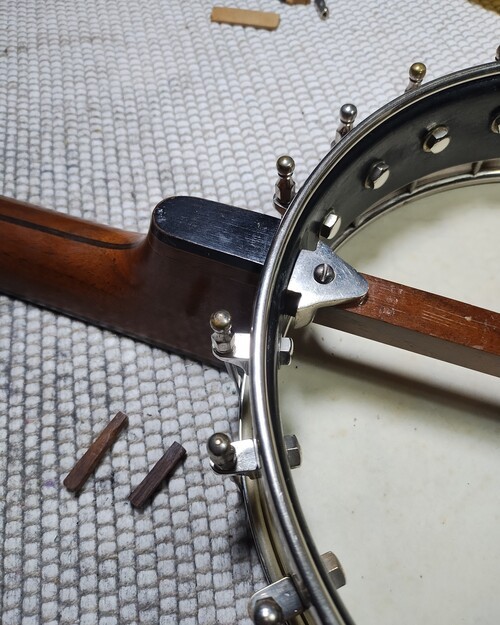

Missing it's wooden wedges.

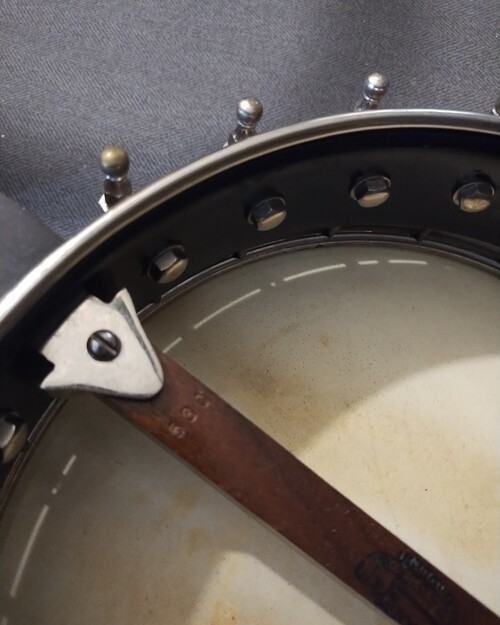

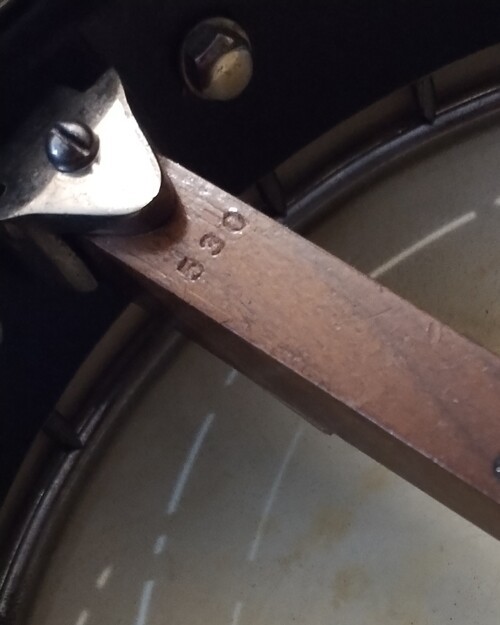

Model #
Batch #

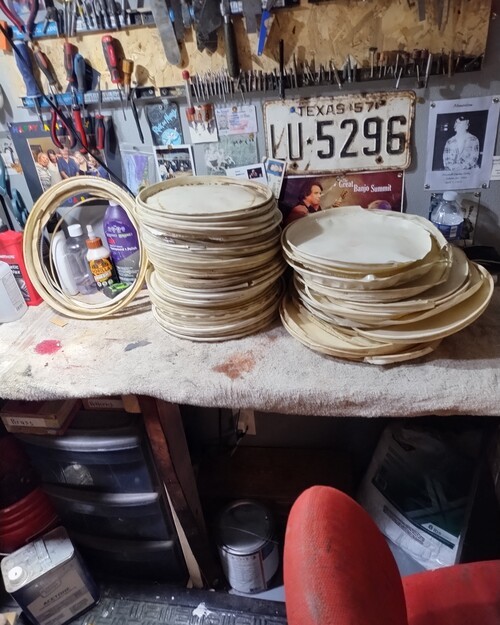

Searching for a quality used hide.

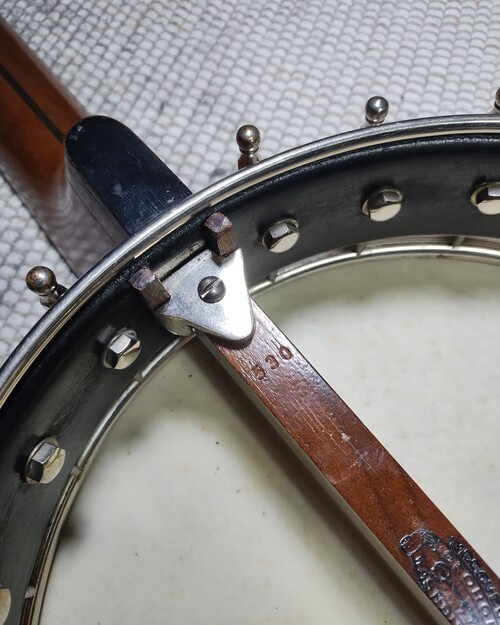

Making some wedges.

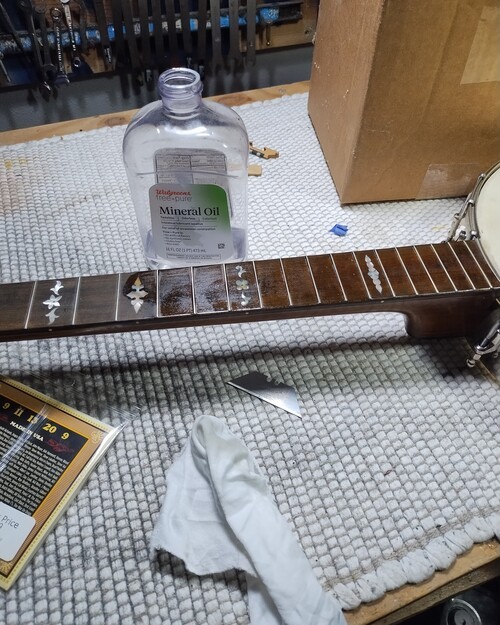

Oiling a thirsty fingerboard.

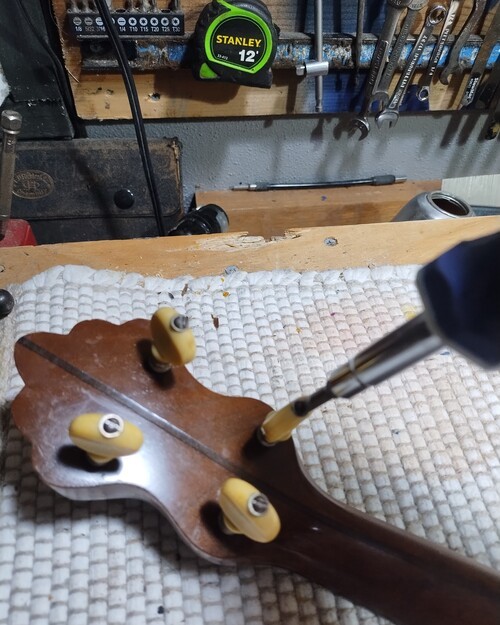

Snugging tuner pegs, use the correct size screwdriver.

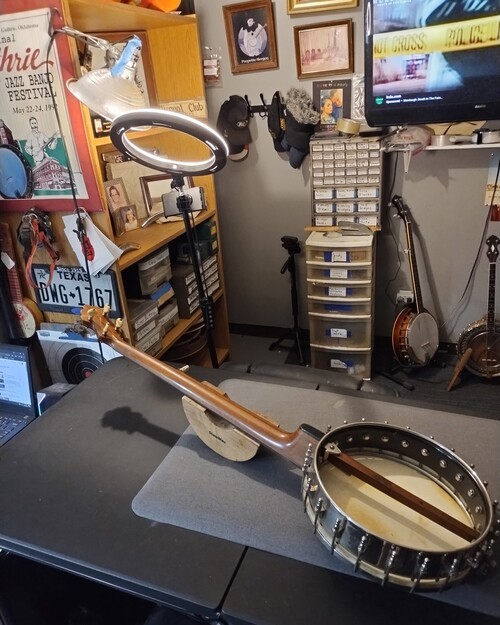

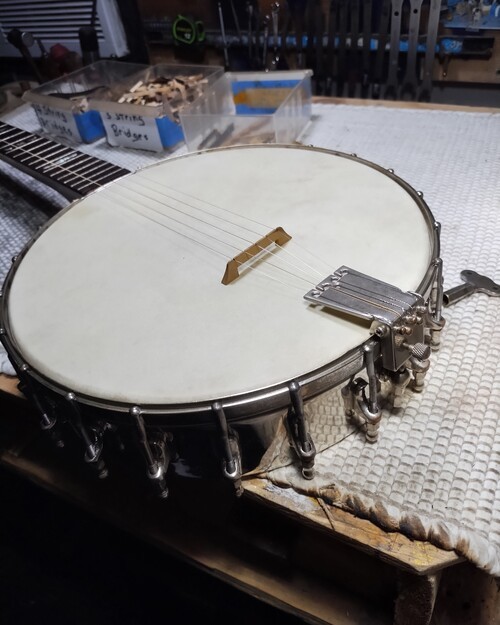

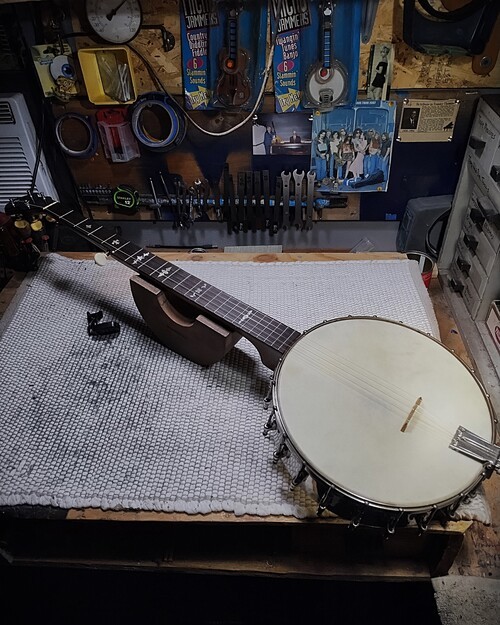

Tuned to pitch and settling in.
Thanks for looking and sharing,
VM
