Work Page 2023
 Weymann Style 20 Banjolin

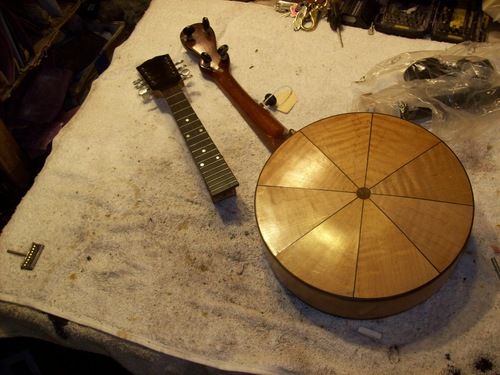

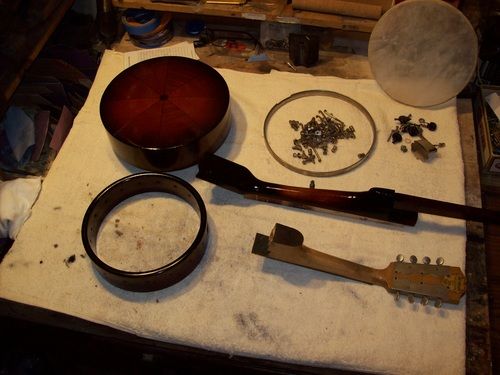

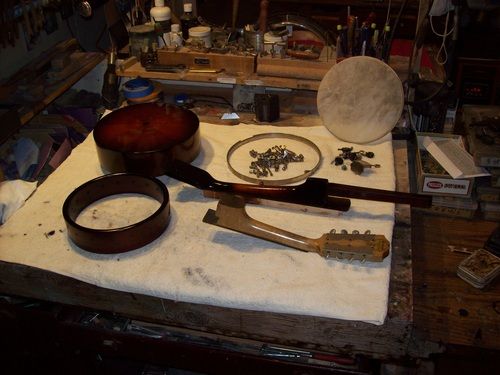

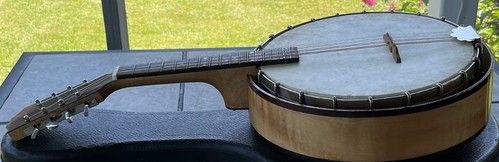

Original example
Convert to soprano 5 string using early 1900s neck
9" rim
Deep wall resonator
15 1/2" scale
Non original dowel

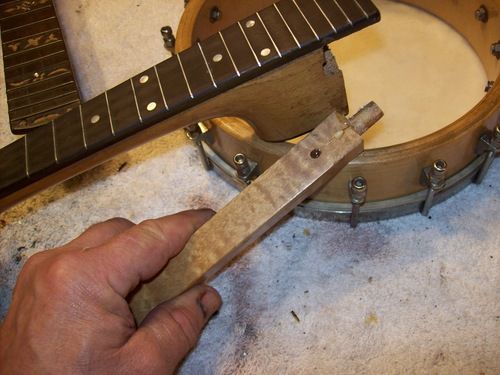

Checking fit
Original luthier's score lines
Ready for mahogany veneer
New bottom laminate installed
Dowel reset-ready for rim finish
This will be its "look"

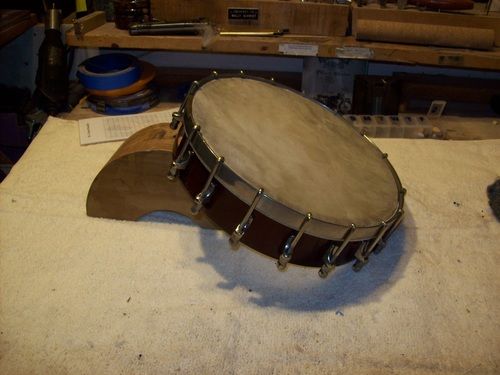

Rim finish complete, ready to assemble
Nothing fancy, just the style
New neck hardware is Vega style.
I glued them to a wood backing and reduced the tops

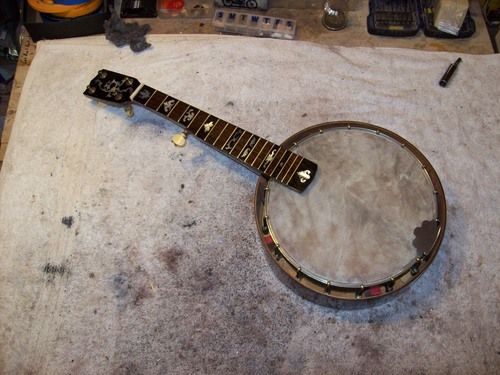

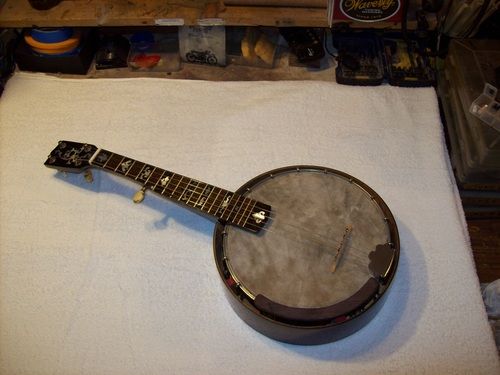

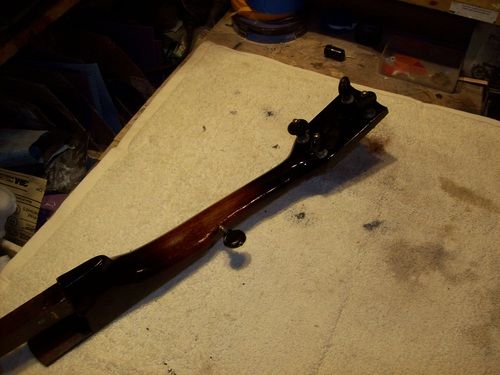

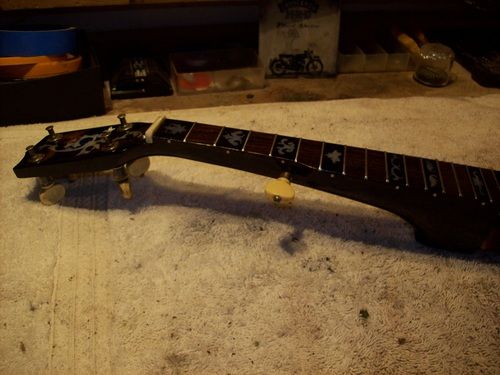

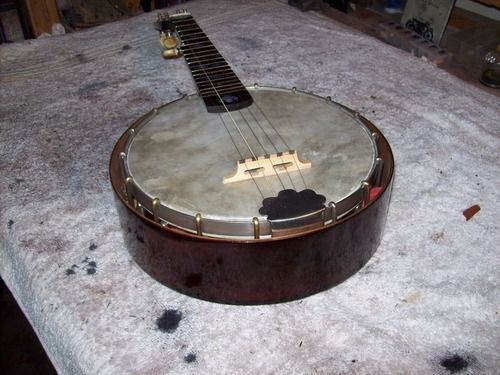

After finish, and with tuners installed
Not a lot of scrap in the width of the new board.
This is more of what I want

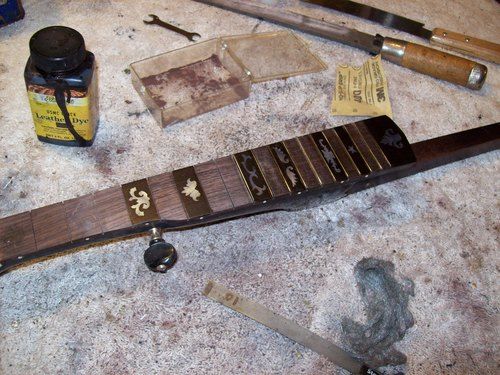

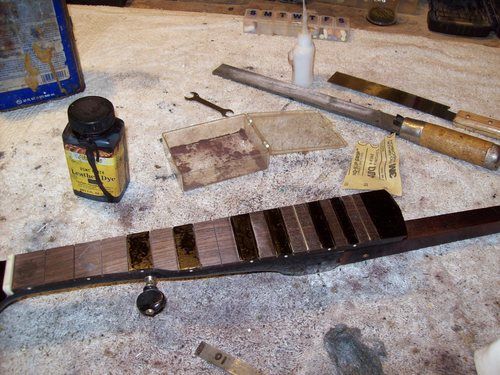

Darkening the marker blocks only.

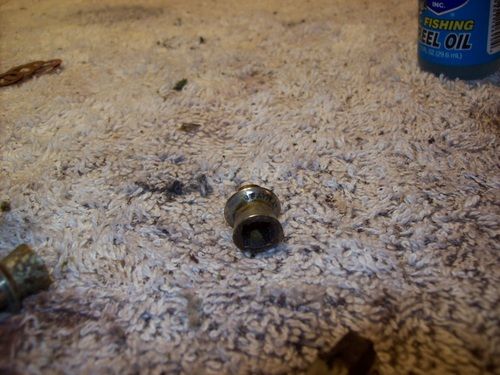

The patent date is on the collar
Reproduction Weymann bridge,I will trim out the base

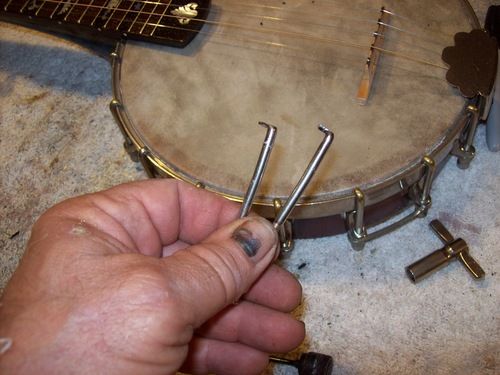

Flattened tension hooks, ground thinner
I will re-use it after modification

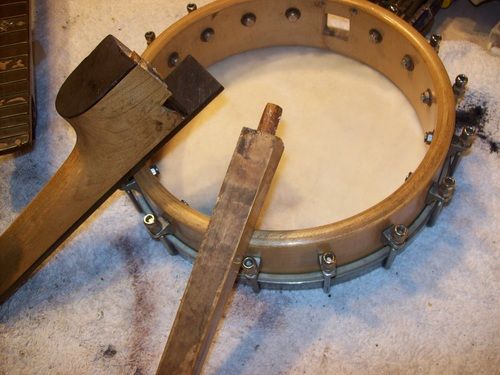

Need to add 3/8 to dowel tip

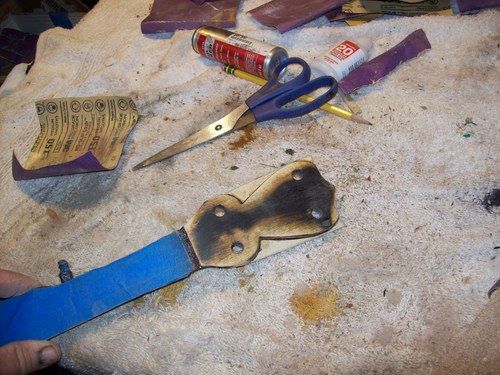

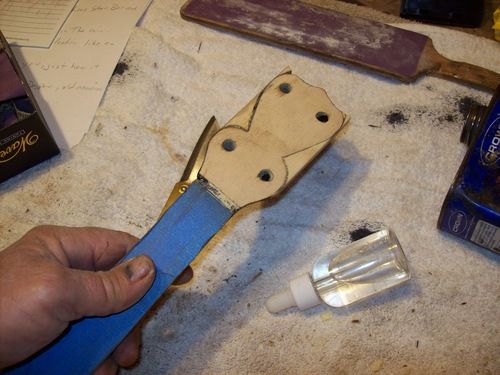

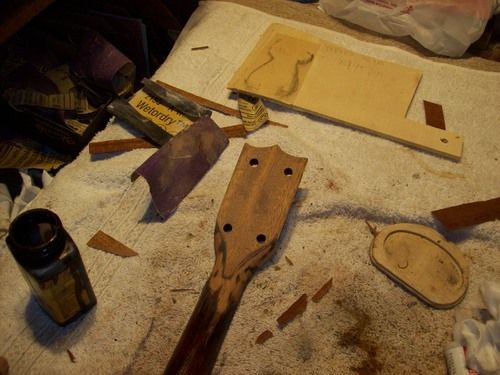

Reshaping the peghead, adding wood
Block sanded
Custom fingerboard ordered
Heel cut out modified for new neck.
Adding finish to all the wood
Re-using the hide that was on it

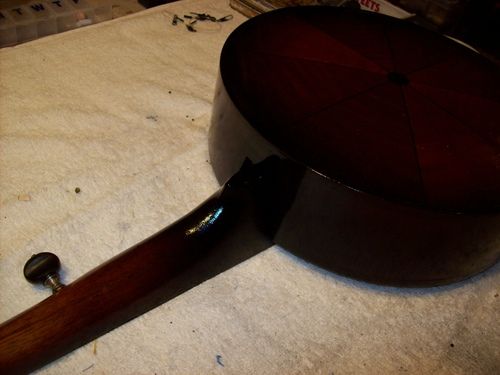

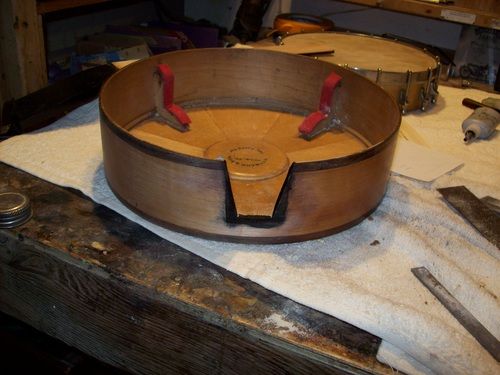

Heel cut/finish complete on resonator

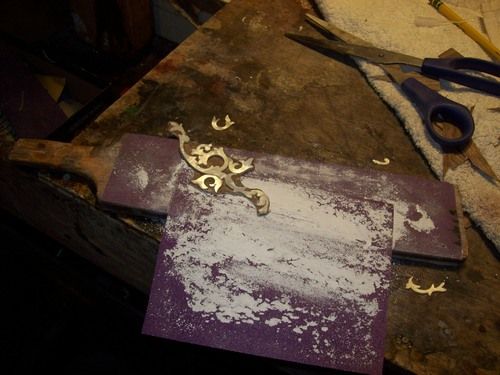

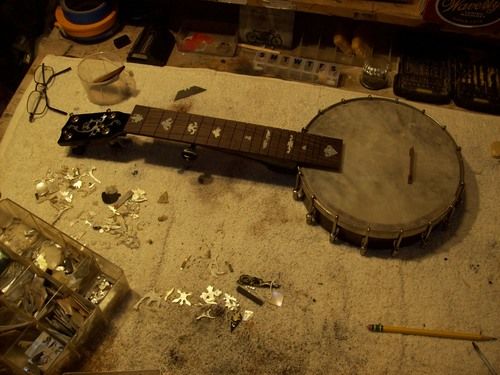

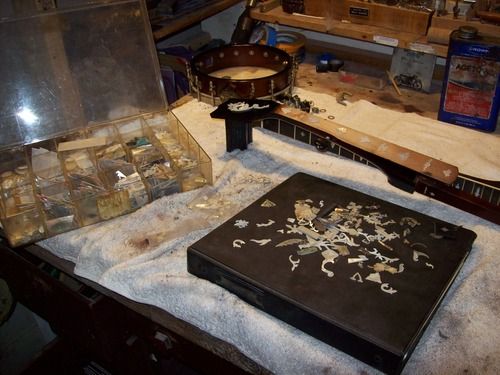

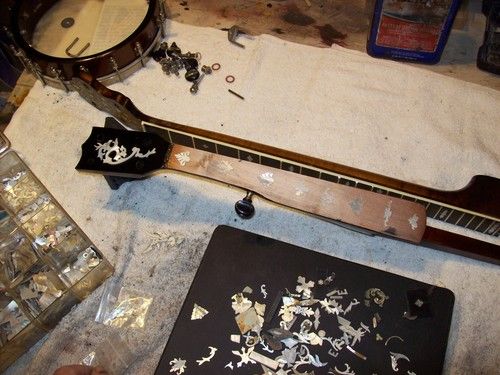

Going thru scrap MOP to get some ideas.
After removing all excess wood
Waiting on new rosewood fingerboard from Allen Guitars.

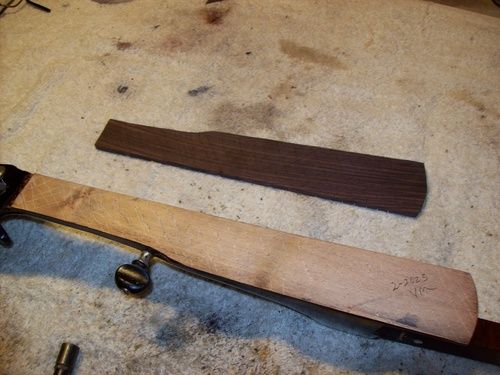

Scored, and signed, but will anyioneever see it?
This will be the "look"

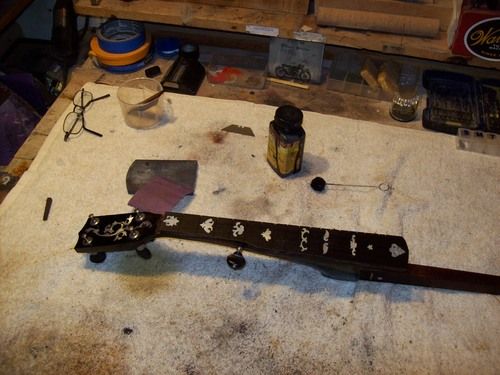

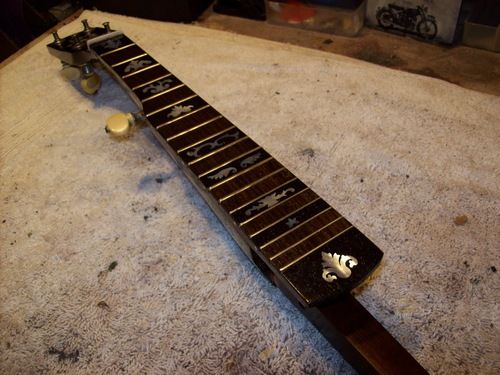

Fretting as I go forth with the inlay

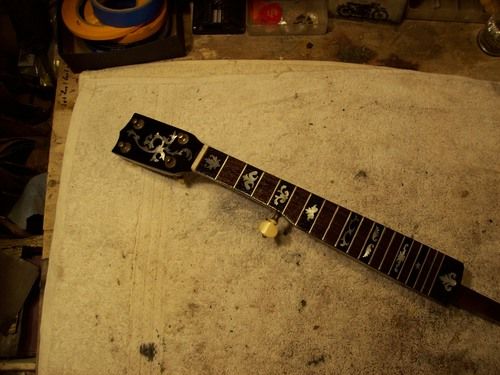

Ready to level-crown-polish fretwork.

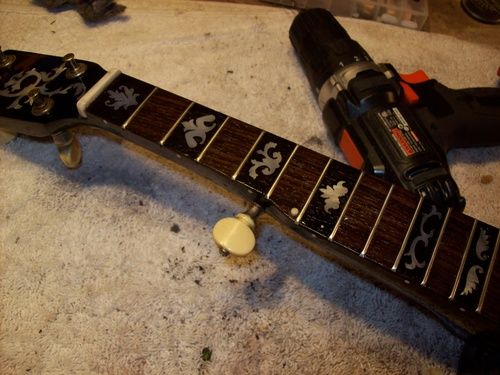

5th string pip installed, ready for setup
Glued into recessed areas, I will glue a washer on top of them

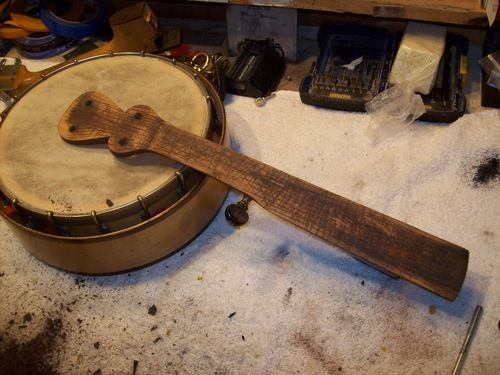

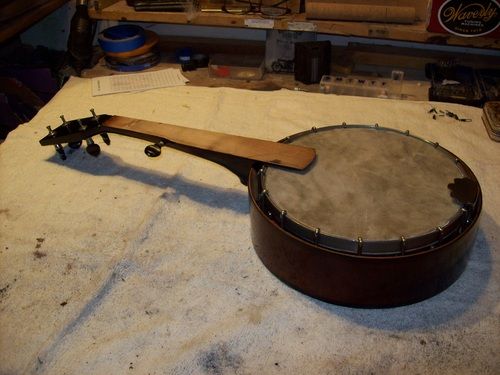

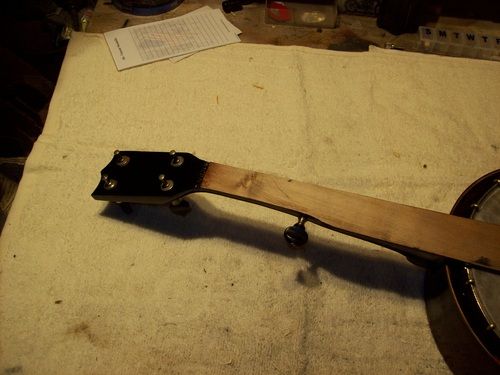

Early 1900s soprano 5 string neck, correct scale

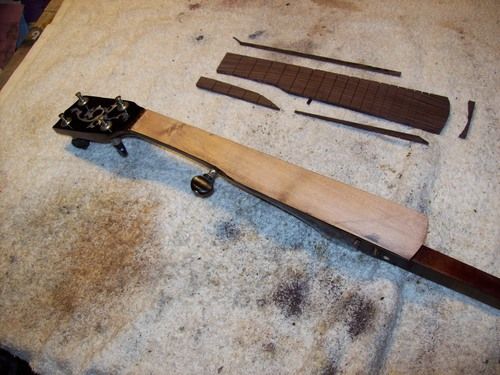

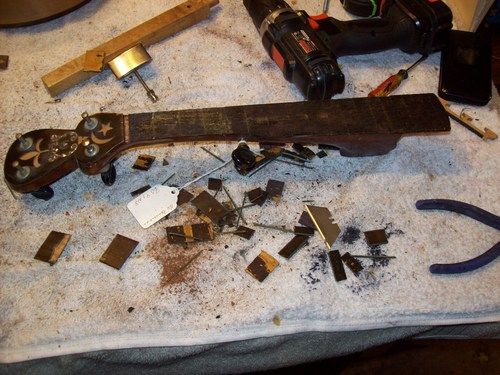

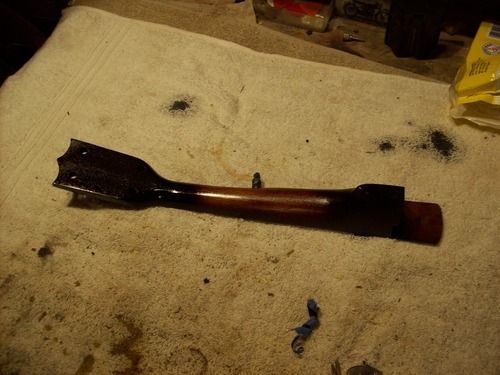

Removing all inlay, fingerboard
Now for the front

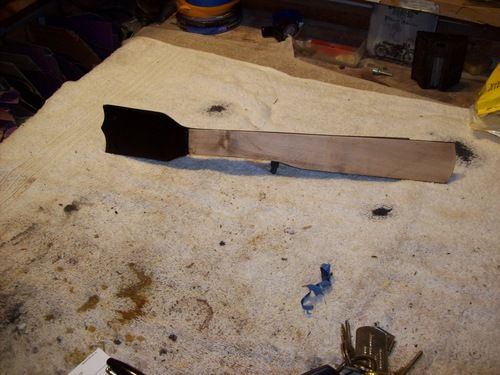

Front is ready for blackening

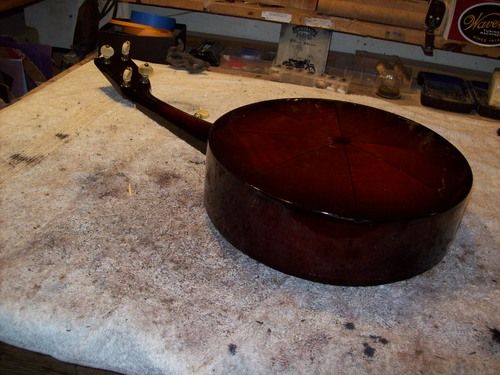

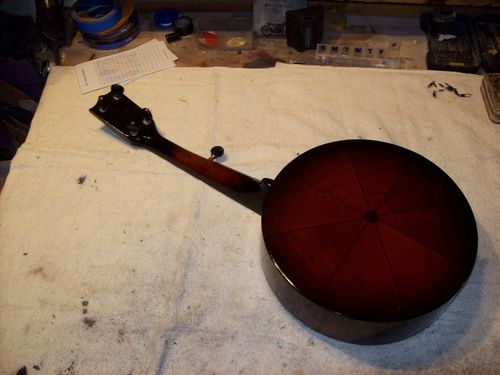

I will use this sunburst

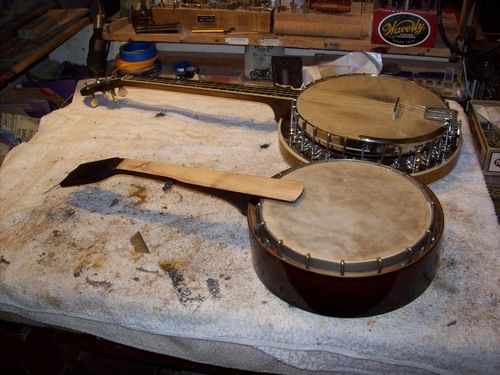

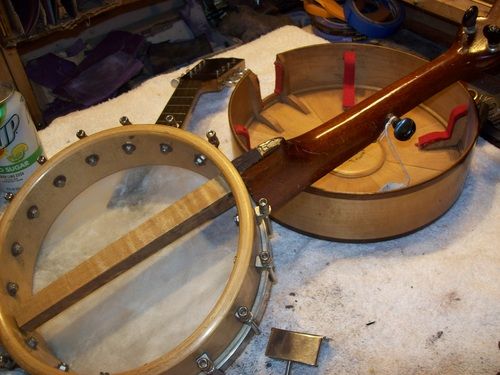

Checking fit and neck angle

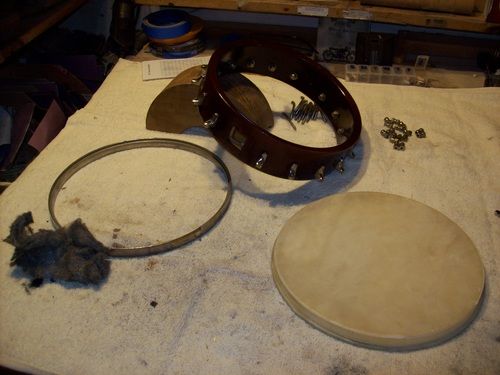

Ready to clean hardware

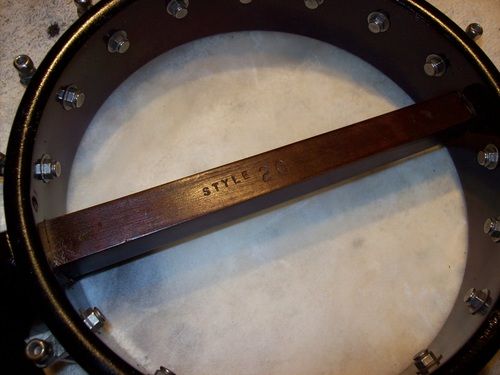

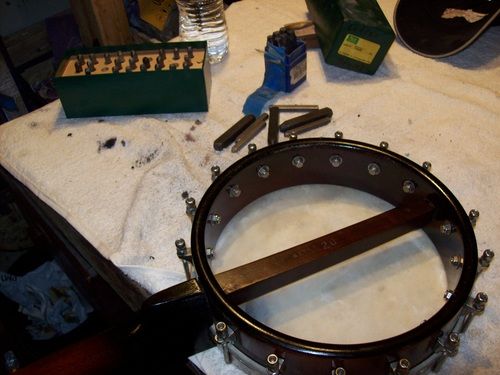

Making a dowel stamp

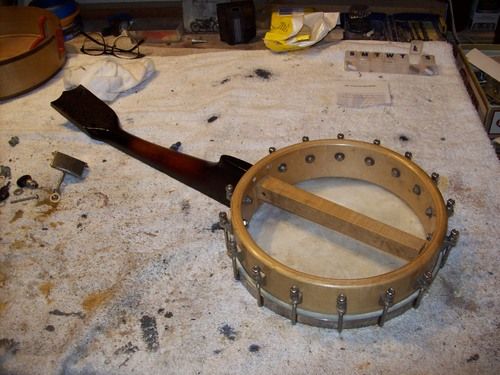

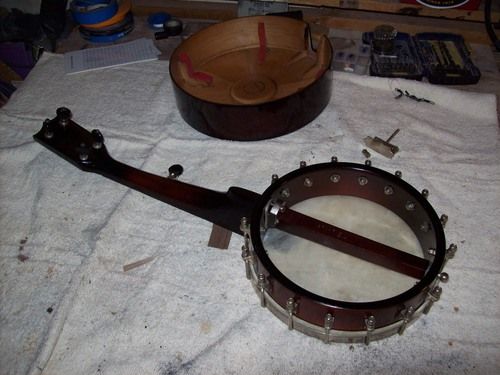

Hardware is installed fo checking string alignment

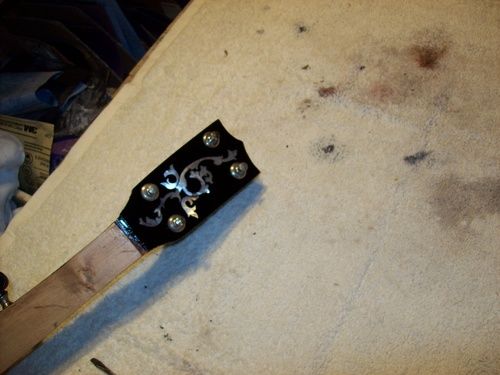

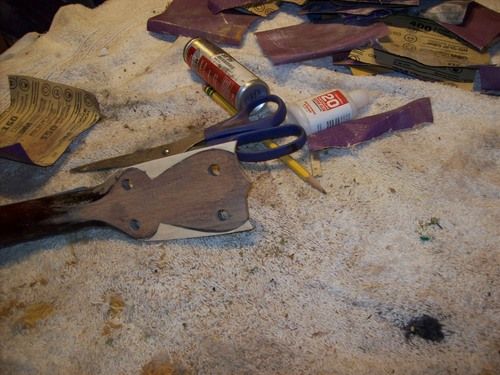

Coming up with a peghead overlay
Outside periphery marked, ready to cut cavity

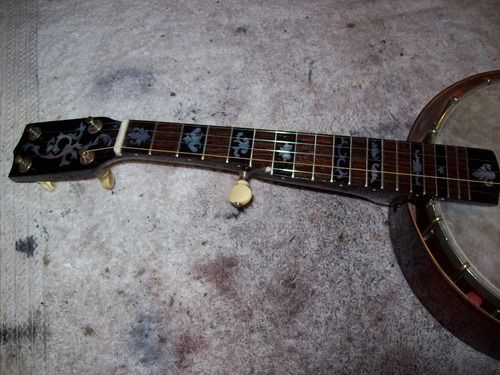

I think this will do for a nice new look.
I will want it darker than the oil is making it

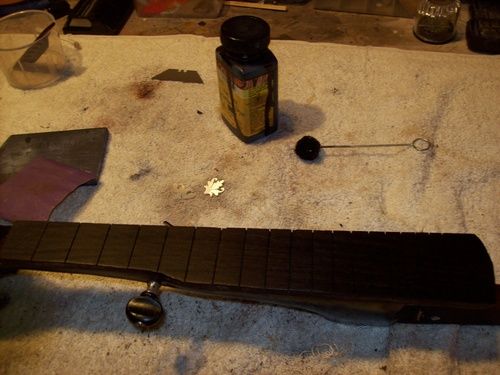

Now to set the pearl

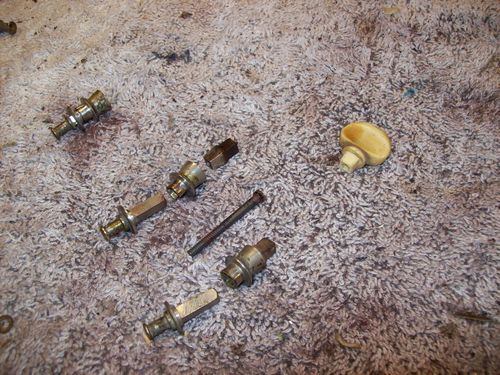

Using the oldest version of Grover Champion's before the button style shown,

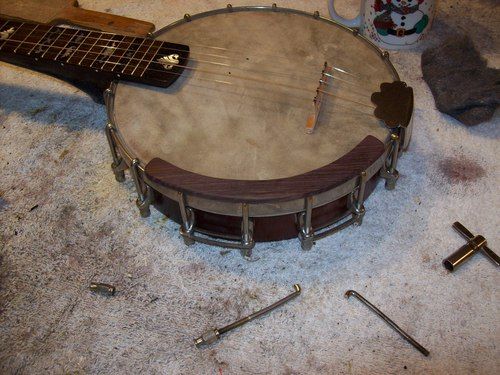

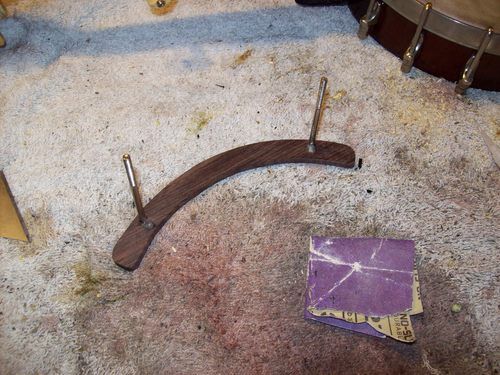

Making an armrest, old style brackets

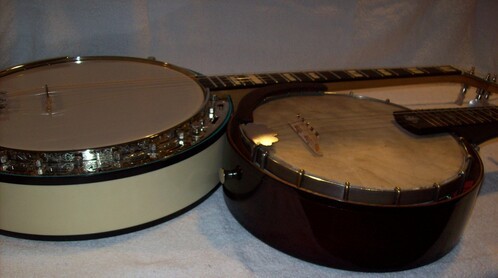

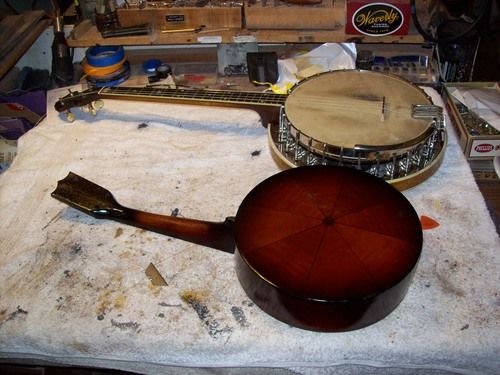

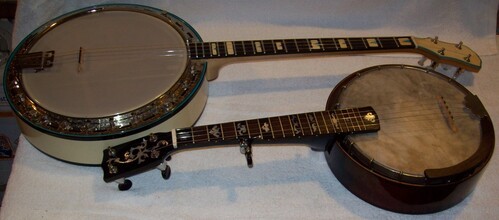

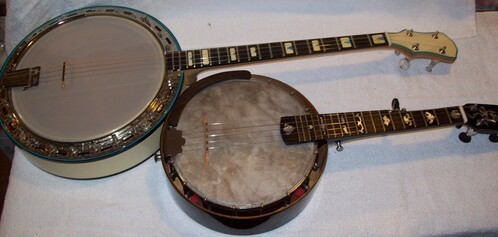

Size comparison next to Barry's PolarVox

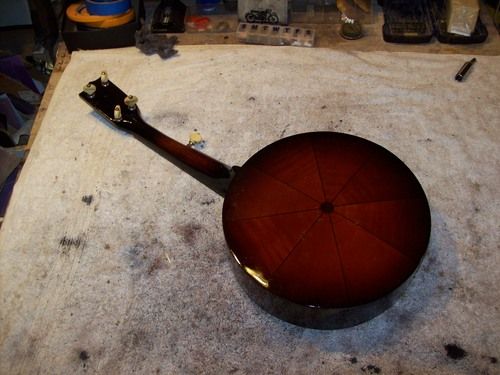

(After adding all geared pegs)
Thanks for looking and sharing,
