Work Page 11-22
1920s Vega Little Wonder Tenor

Repair to play as per customers requests
17 fret open back -11-13/16" rim

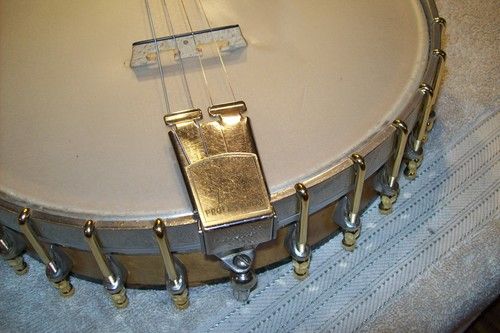

Vegaphone Presto Tailpiece
Schaller tuners
Bart Bridge
Some prior restoration
(Gold plating on some pieces

Initial observation

Needs neck press, binding repair,frets, neck elevation,fresh setup

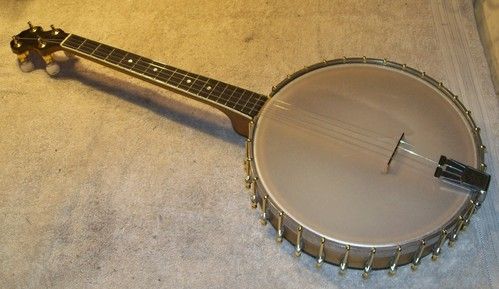

Initial pics

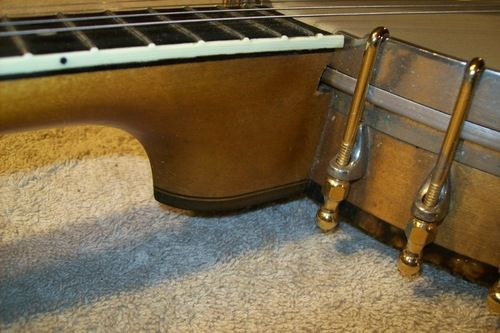

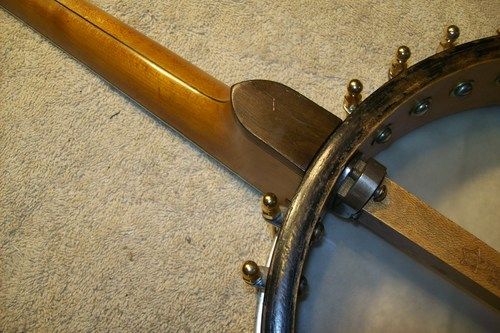

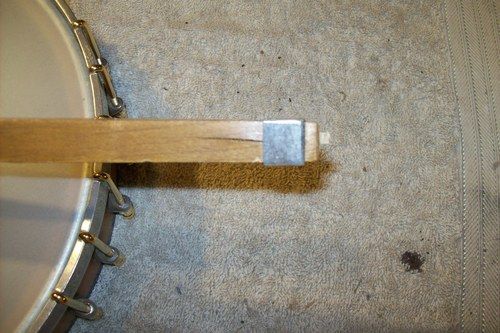

Heel cut was altered to accept high crown head
Dowel set appears ok

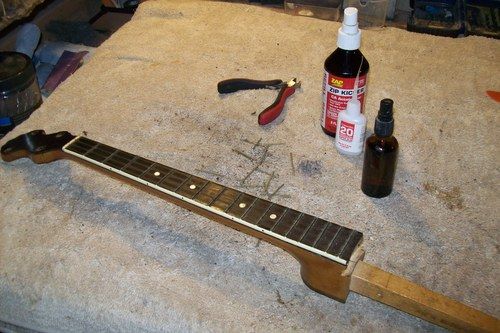

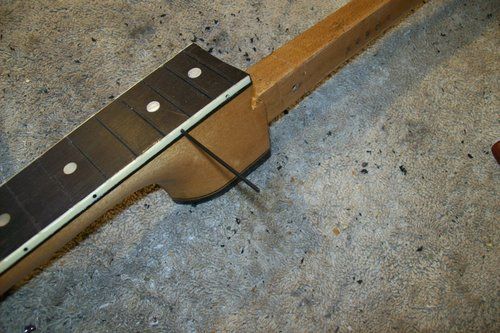

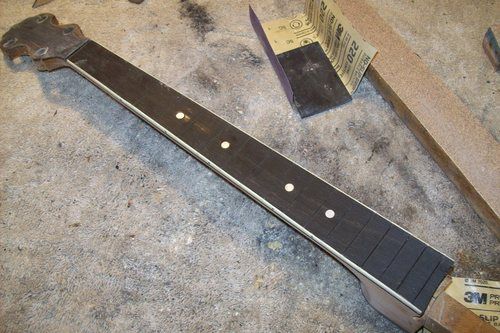

Frets out, binding repaired, now to level.

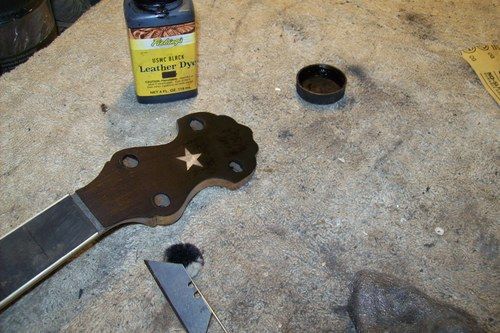

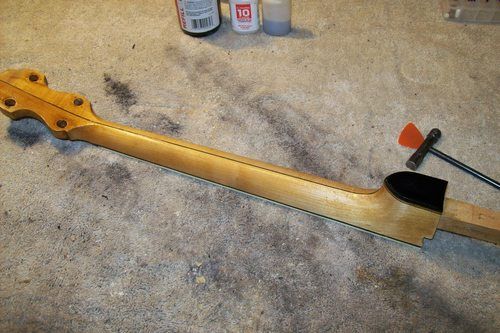

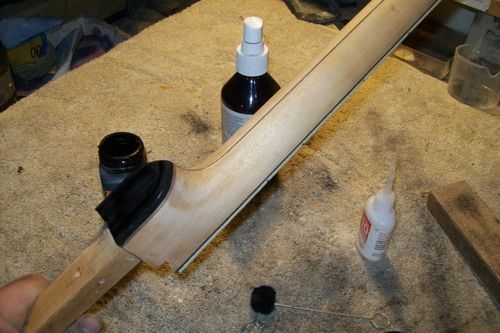

Heel sealed, dyed black, ready for sealer

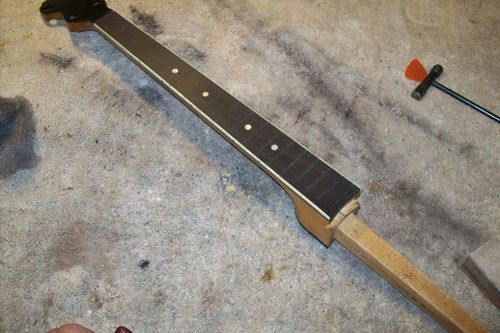

Neck sealed, will tint after re-fret

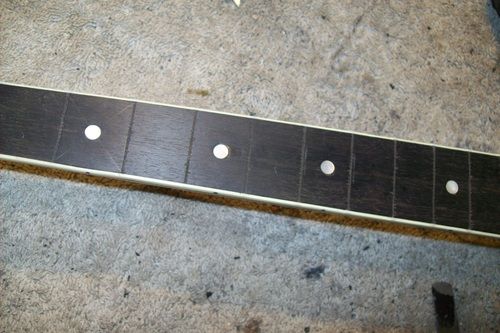

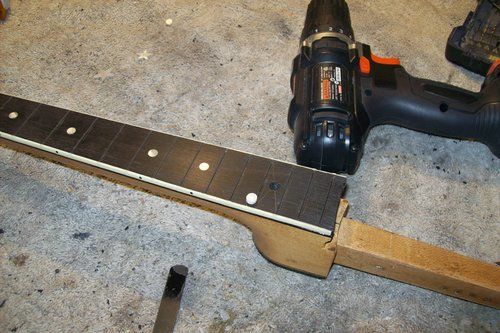

Marked and drilled, 1/2" dots,matching MOP
Installing the additional side dots, 3/32"

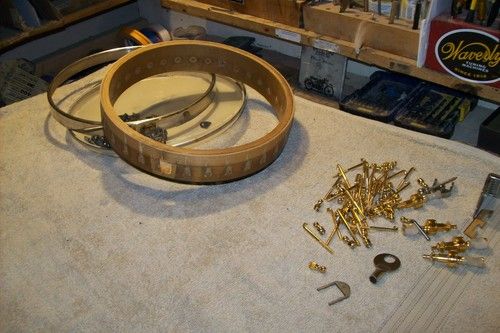

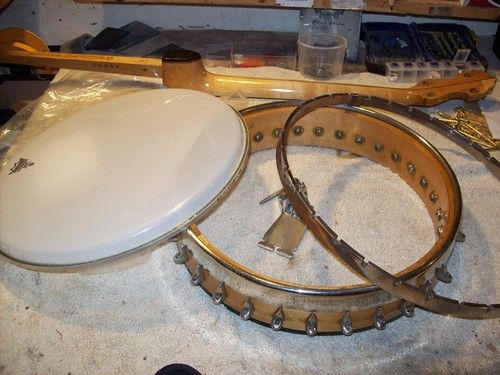

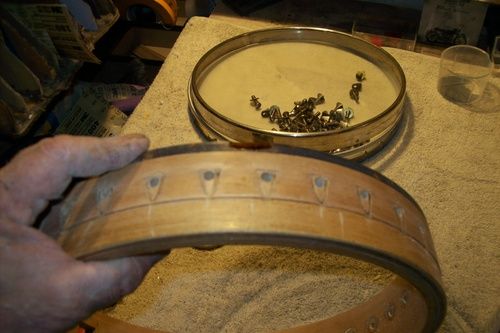

Rim disassembled for cleaning/refinish

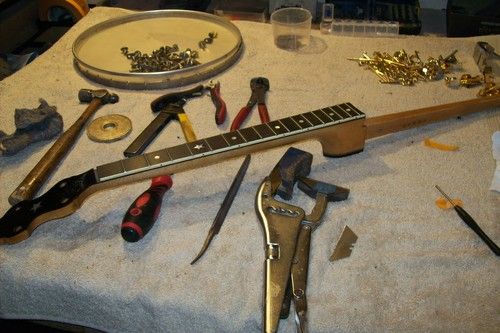

All in and sealed, next will be leveling/crowning

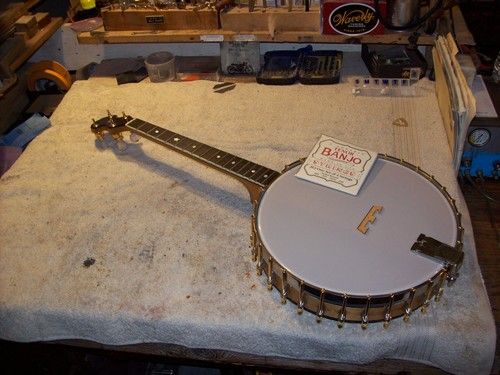

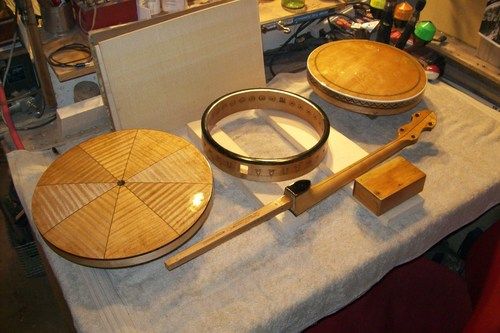

Parts taking on clear coats with other work

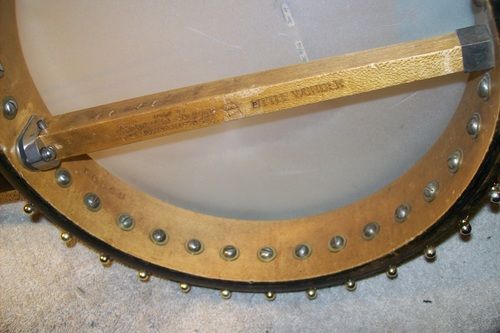

Big Vega resonator dominates the pic
Initial pics

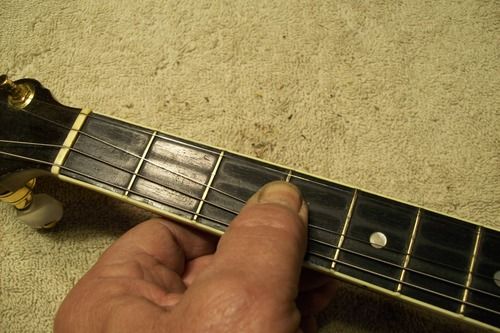

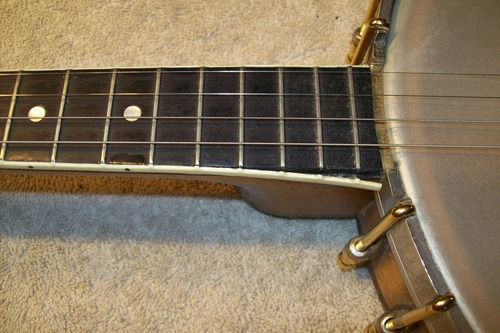

Light board wear, frets look original,worn

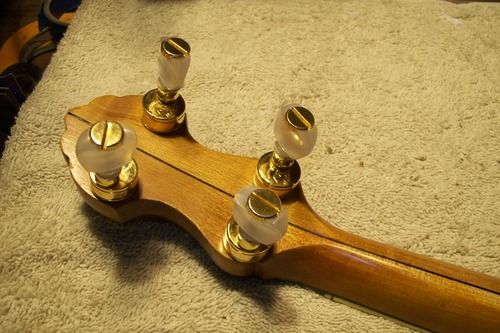

Schallers overhang the peg head a bit.
Removing finish, sealing cracks
Board leveled, optional fret markers shown next.

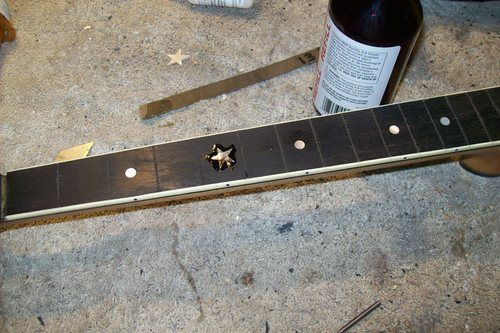

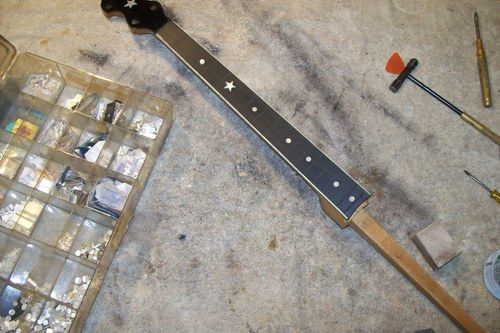

Ready for additional inlay on peghead and fboard.

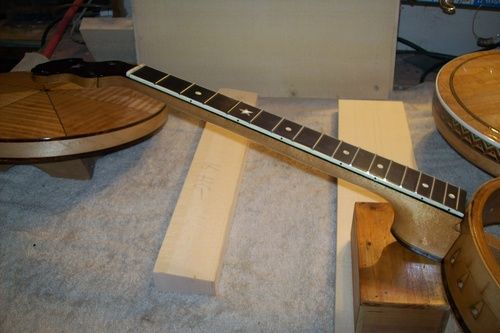

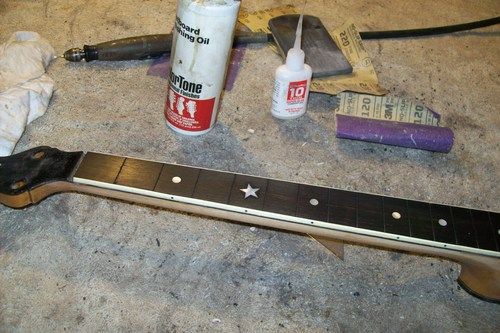

Inlays leveled, board is oiled, ready for frets.

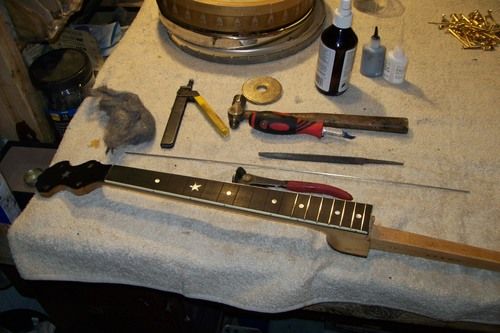

Fret slots cleaned,Stewmac 147 wire
Over the heel first.
Repairing spots in tortoise binding with amber CA

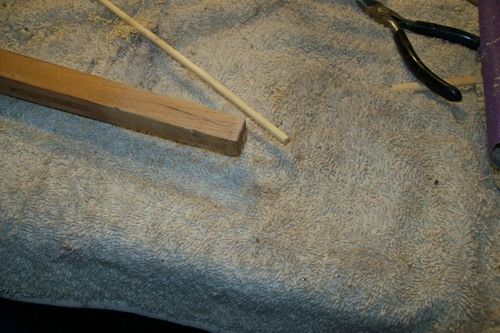

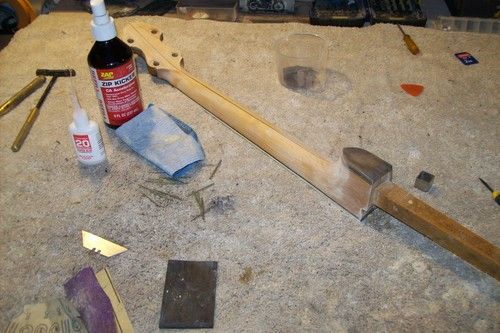

Dowel repair completed, 1/4 insert glued into place.
Modern binding, can be saved
No plating on brass washers
Dowel needs repair, split and open
Cracks in pearwood, will seal and dye

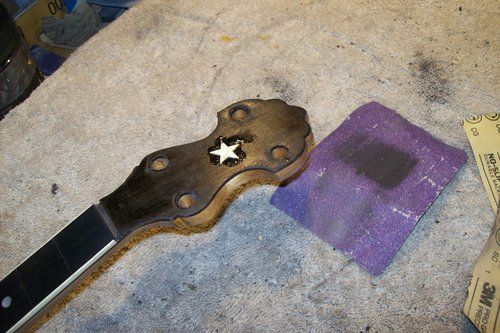

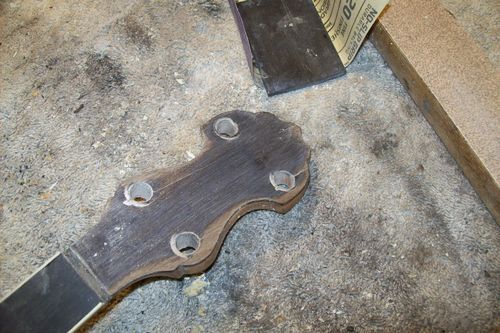

Peg head star, dot at 3, change to star at 5

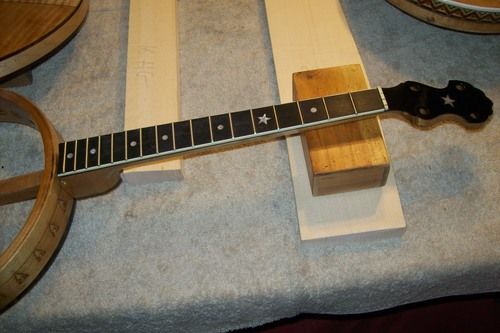

Dots at 17 and 19
After leveling, additional dye was added.

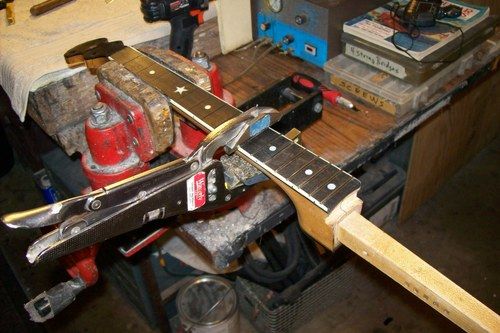

Compression fretting up the neck

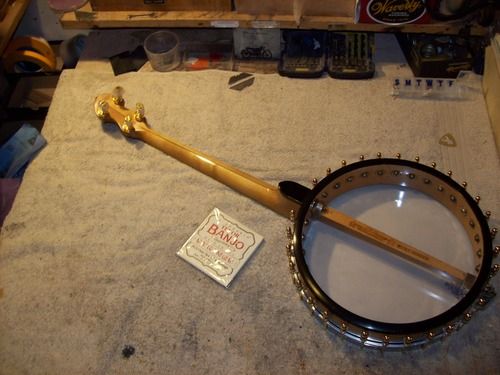

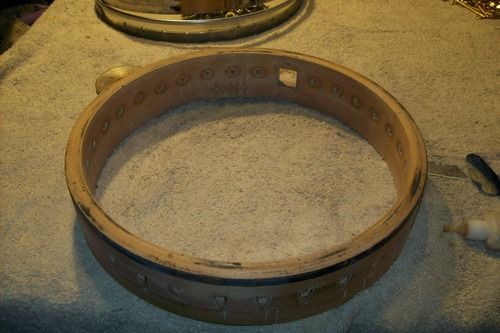

Rim ready to dye bottom and refinish
MORE TO FOLLOW
