1920's Slingerland "Liberty" Guitar by Cathedranola
Sioux City Iowa
RARE instrument
Unseen in this configuration (by me) except in mandolin scale
Unseen in this configuration (by me) except in mandolin scale
Usually seen as a Tenor Guitar in the same configuration as the guitar in the ad.
See this link for an example
https://jakewildwood.blogspot.com/2022/07/1920s-slingerland-maybell-cathedranola.html

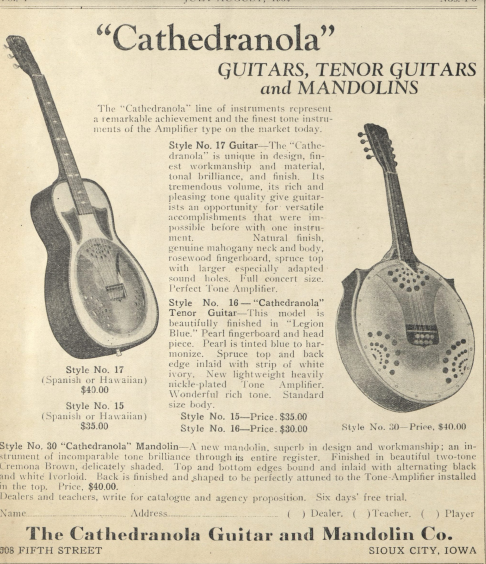

It looks like the 6 string in the ad below.
See this link for an example
https://jakewildwood.blogspot.com/2022/07/1920s-slingerland-maybell-cathedranola.html
It looks like the 6 string in the ad below.
These are not true "resonator guitars"
They are wooden top instruments with a faux resonator cover.
Other makes also did this as an option.
Here it is called a "Tone Amplifier"
So this is really, at 23' scale and 22 frets, a Plectrum/Tenor Guitar
22 fret extended fingerboard
23" scale
Tuned CGDA
Can be tuned in plectrum, GDAE, DGBE, etc.
Made for the Slingerland Drum Co. who also made some very fine banjos and, who also marketed mail order instruments under the name "Liberty"
It has a nice warm tone as a 4 string guitar would with a metallic resonance from thecover plate.
The original finish is thin, as will be the replacement Lacquer. 4 coats
Frets are original thin wire, freshly dressed
Peghead, neck and body stripped, and 3 fresh coats of nitro lacquer applied.
Side markers added.
Grover 2:1 geared tuners and ivoroid buttons.
The original finish is thin, as will be the replacement Lacquer. 4 coats
Frets are good, I will dress them.
Peg head overlay has a few hairline cracks, will seal and dye before finish.
I will seek out a clean set of Grover 2:1 gears like came on it but would be extremely lucky to find the delicate little tuner button that came on these.
They are wooden top instruments with a faux resonator cover.
Other makes also did this as an option.
Here it is called a "Tone Amplifier"
So this is really, at 23' scale and 22 frets, a Plectrum/Tenor Guitar
22 fret extended fingerboard
23" scale
Tuned CGDA
Can be tuned in plectrum, GDAE, DGBE, etc.
Made for the Slingerland Drum Co. who also made some very fine banjos and, who also marketed mail order instruments under the name "Liberty"
It has a nice warm tone as a 4 string guitar would with a metallic resonance from thecover plate.
The original finish is thin, as will be the replacement Lacquer. 4 coats
Frets are original thin wire, freshly dressed
Peghead, neck and body stripped, and 3 fresh coats of nitro lacquer applied.
Side markers added.
Grover 2:1 geared tuners and ivoroid buttons.
Grover bridge.
Strings touch cover plate for resonance and it sounds like a resonator guitar.
The original finish is thin, as will be the replacement Lacquer. 4 coats
Frets are good, I will dress them.
Peg head overlay has a few hairline cracks, will seal and dye before finish.
I will seek out a clean set of Grover 2:1 gears like came on it but would be extremely lucky to find the delicate little tuner button that came on these.

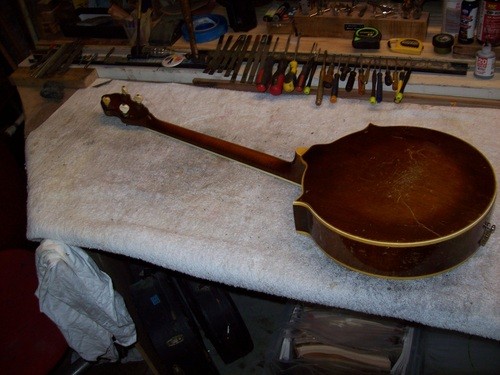

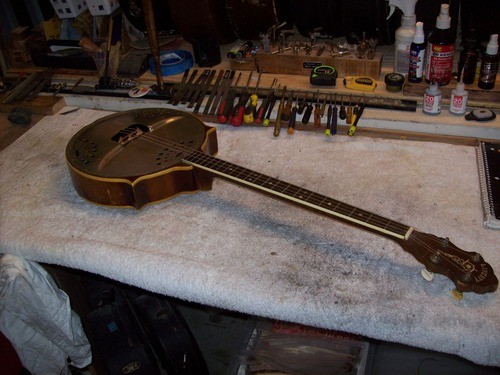

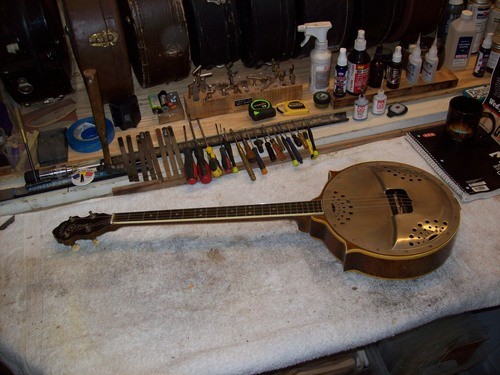

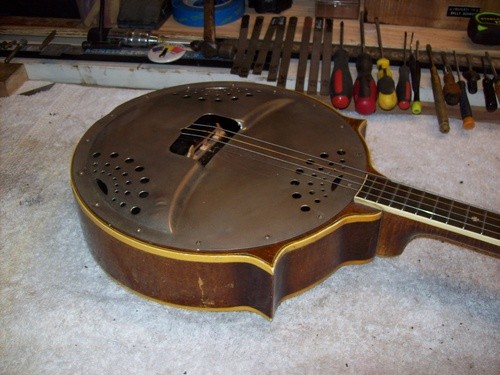

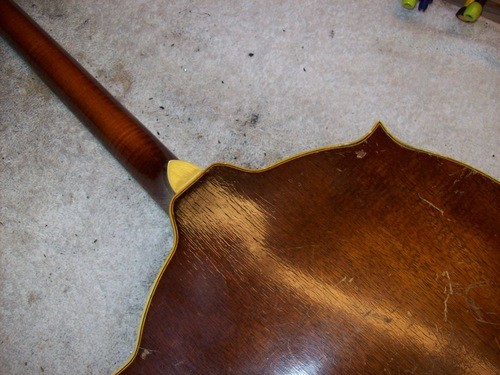

INITIAL PICS

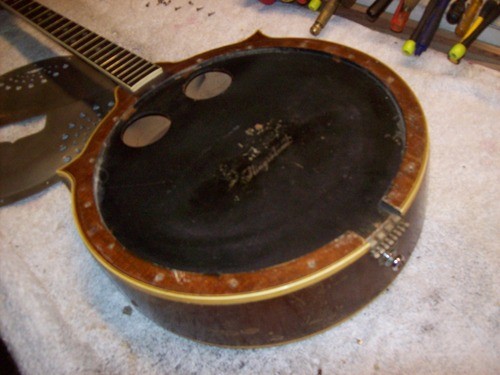

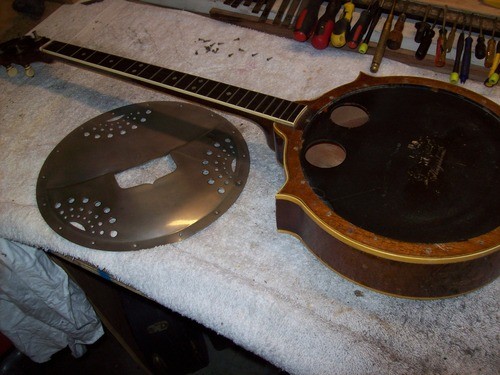

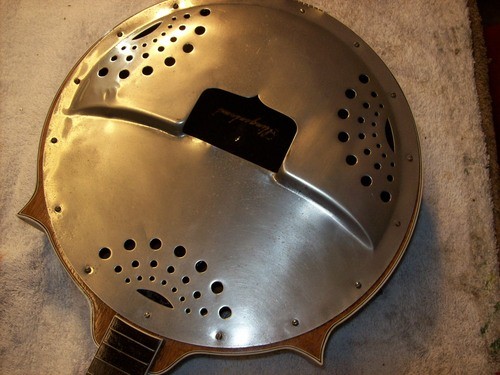

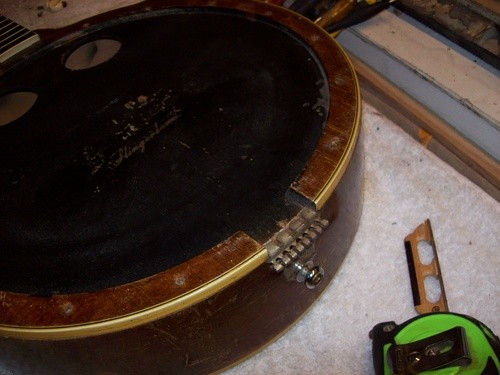

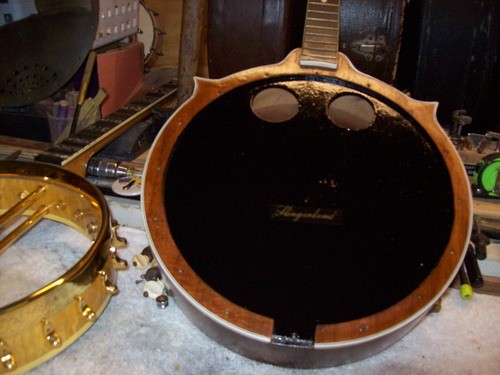

Disassembly

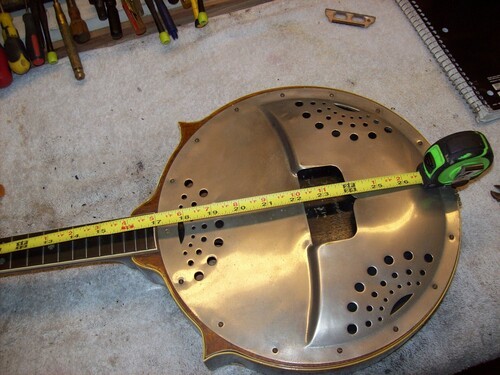

Compressed scale, to get 23" and 22 frets

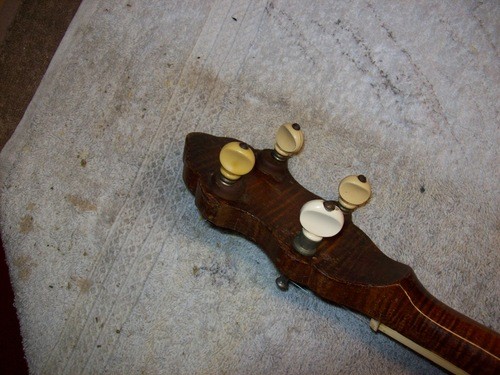

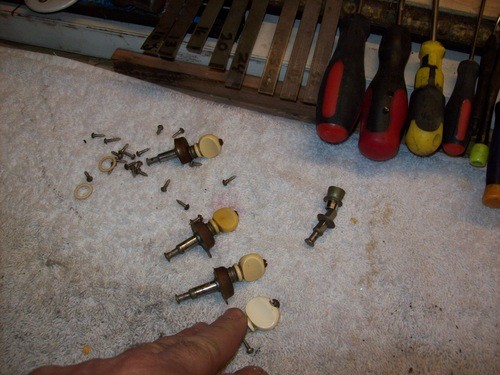

Need one small button like the other 3
Adding clear after stripping

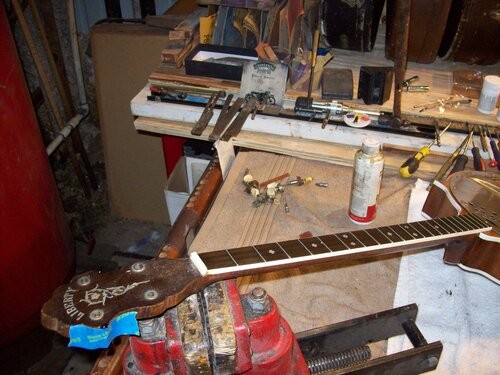

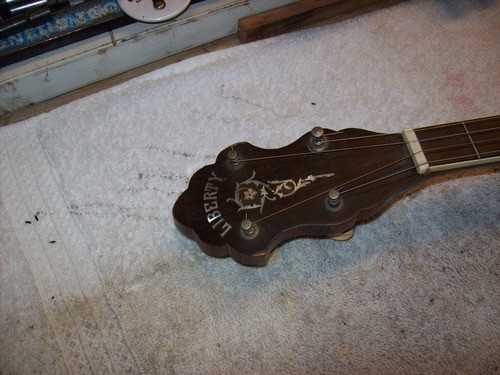

fixing the peg head chip

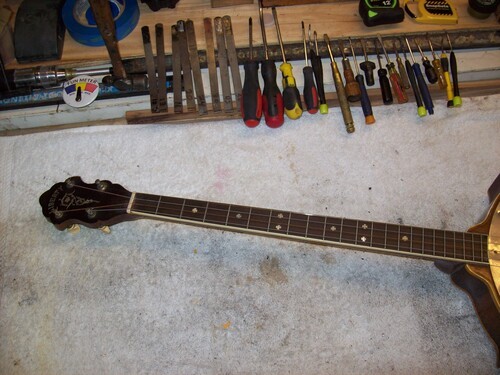

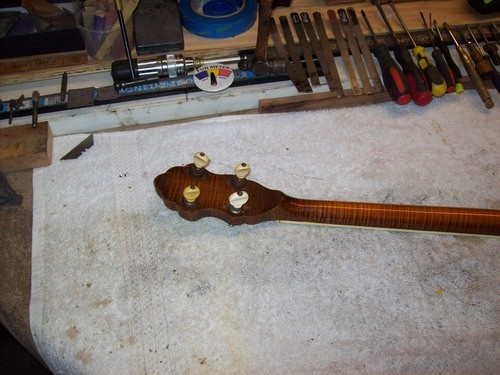

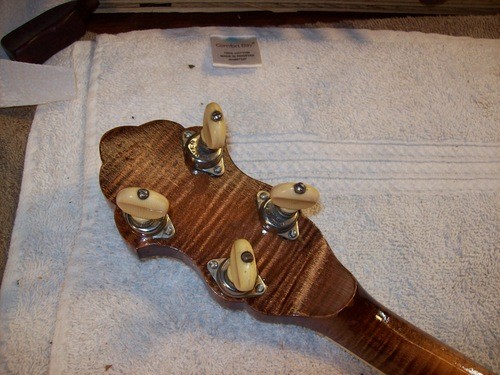

New vintage Grovers installed
Proprietary tailpiece

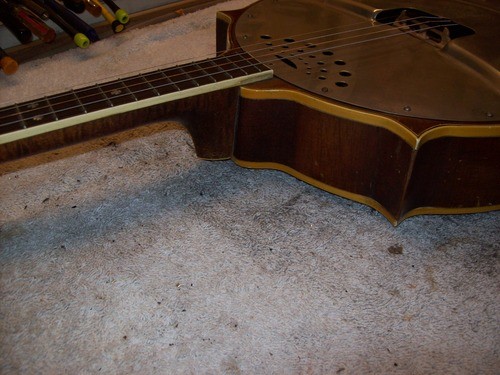

A well made instrument, all corners tight

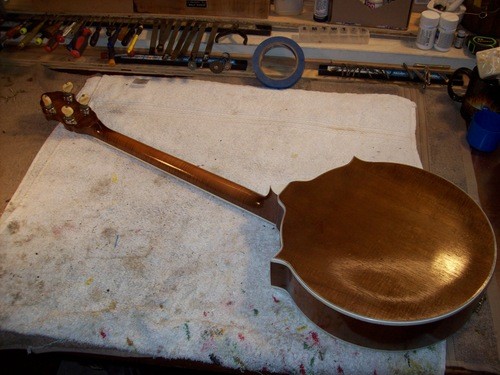

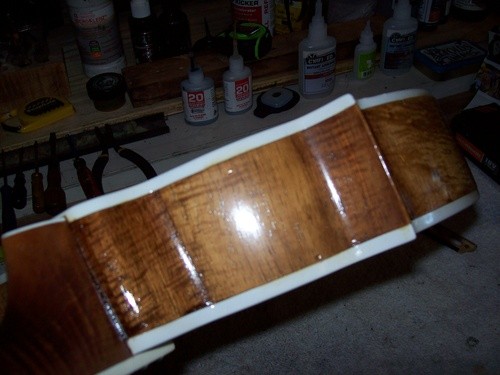

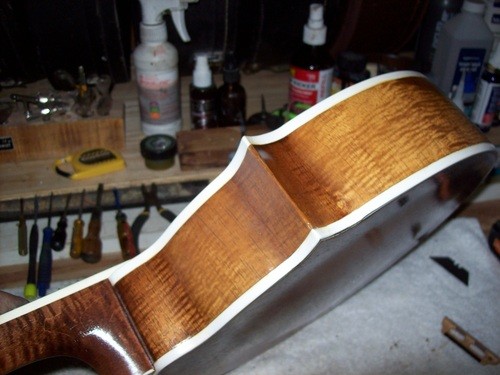

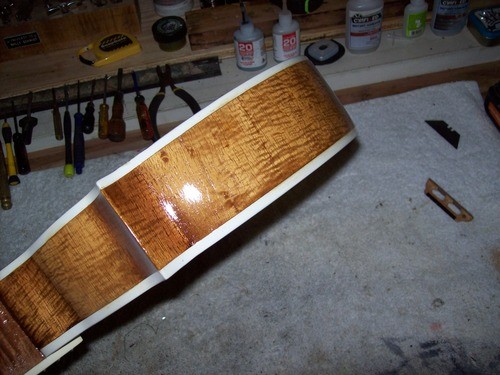

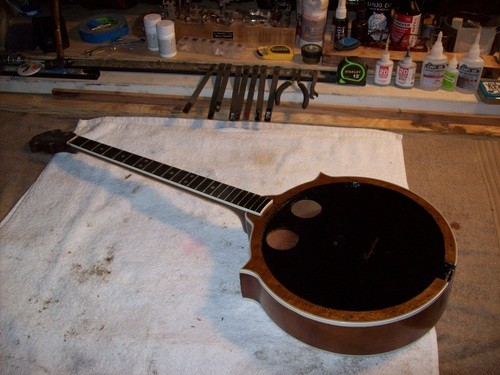

Body finish complete

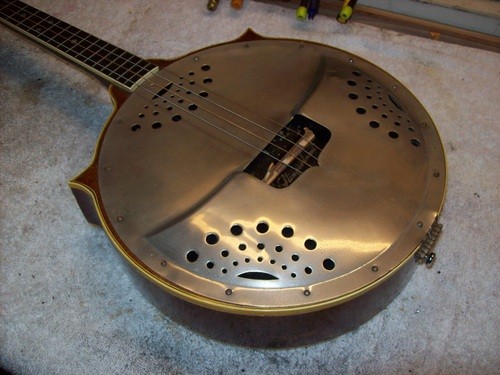

Coverplate cleaned

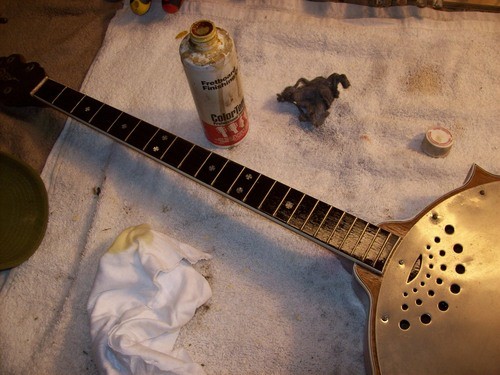

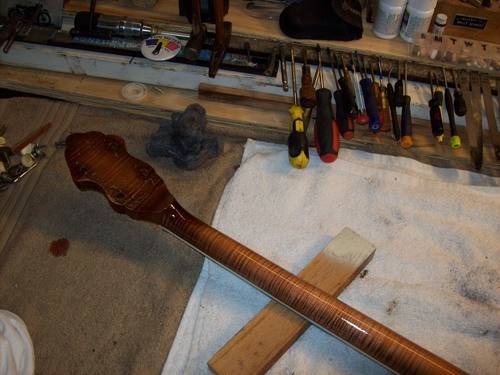

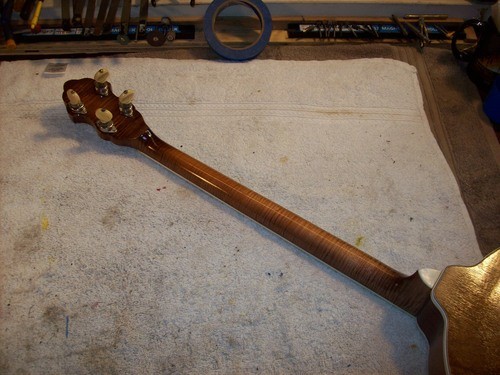

Neck finish complete

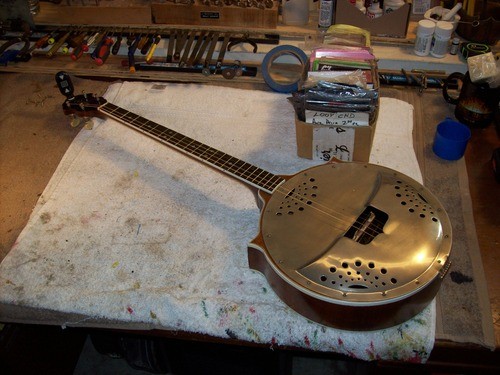

Strung to pitch, CGDA

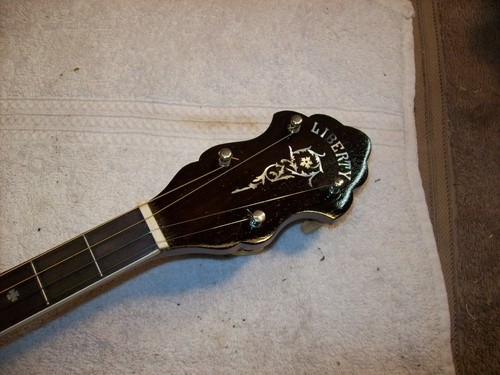

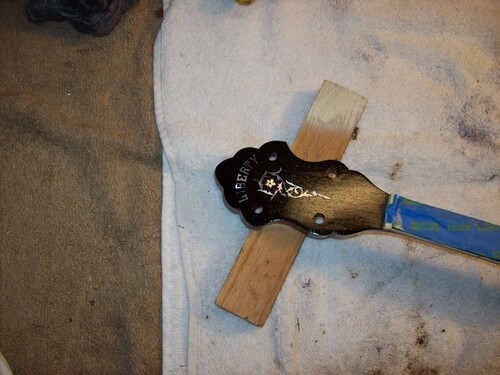

Saved the logo, will blacken around it

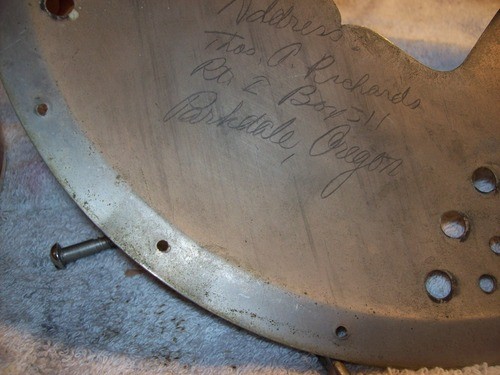

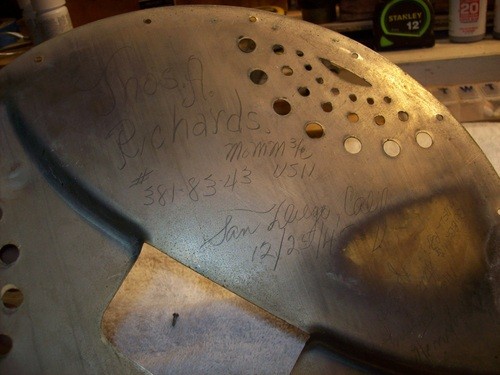

Cool post WW2 signature and military #s
Oiling fingerboard

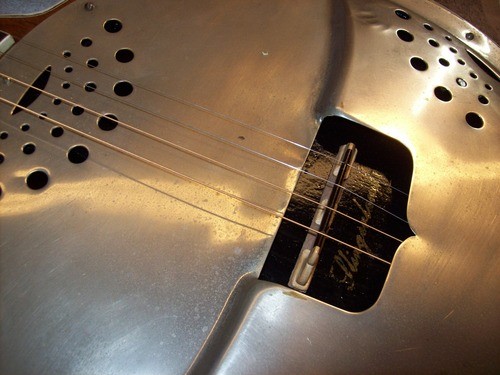

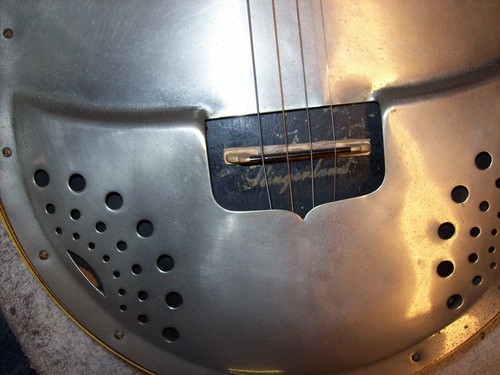

Farquhar bridge,Strings tuch coverplate for resonance
Thanks for looking and sharing.
